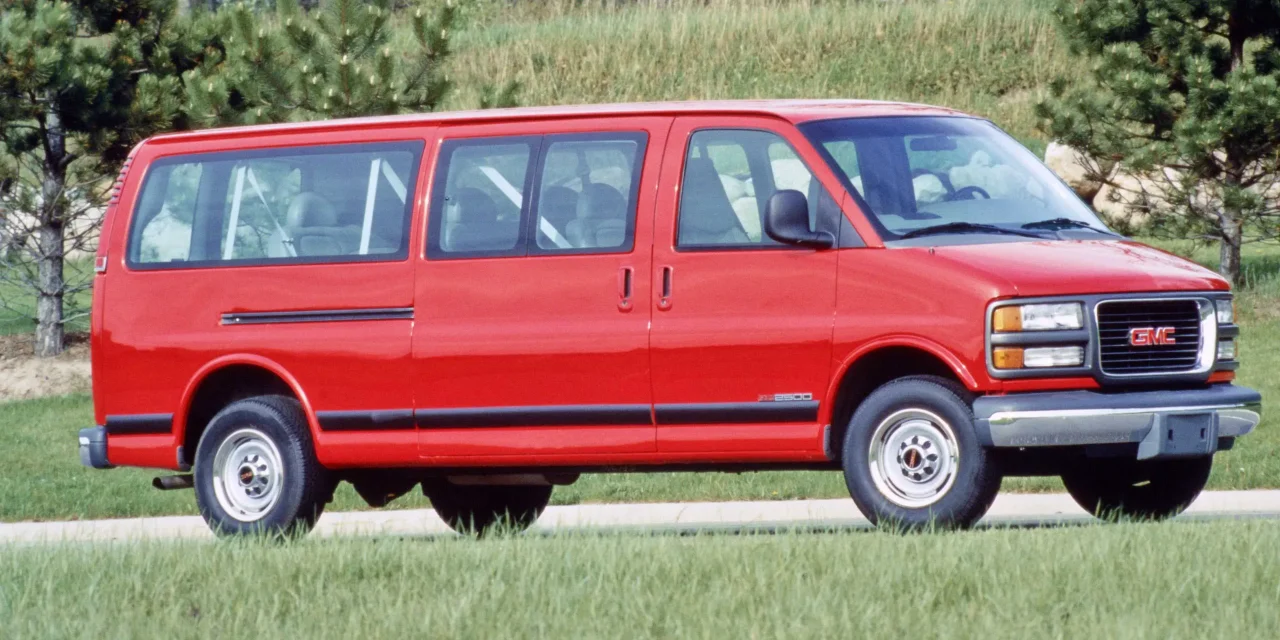

1996 GMC Savana G2500 Cargo Van 5.7 V8 Hydra-Matic, 4-speed
- Gasoline
- United States
Specifications
Vehicle Details
- Year
- 1996
- Make
- GMC
- Model
- Savana
- Variation
- G2500 Cargo Van 5.7 V8 Hydra-Matic, 4-speed
- Generation
- GMT600 (1996-2002)
- Seats
- 1
- Doors
- 4
- Fuel
- Gasoline
- Drivetrain
- RWD
Powertrain
- Engine Name
- V-Engine
- Engine Configuration
- V
- Power (hp)
- 254 hp
- Power (kW)
- 186 kW
- Brake Horsepower
- 250 bhp
- Torque (Nm)
- 447 Nm
- Torque (lb-ft)
- 330 lb-ft
- RPM at Max Power
- 4,600 rpm
- RPM at Max Torque
- 2,800 rpm
- Displacement (cc)
- 5,733 cc
- Displacement (litres)
- 5.7 l
- Cylinders
- 8
- Valves Per Cylinder
- 2
- Bore
- 101.6 mm
- Stroke
- 88.39 mm
Dimensions & Weight
- Width
- 31 mm
- Height
- 2,060 - 2,099 mm
- Track, Front
- 1,721 mm
- Track, Rear
- 1,708 mm
- Ground Clearance
- 203 - 208 mm
- Gross Weight
- 3,901 kg
Interior Dimensions
- Head Room, Front
- 1,031 mm
- Leg Room, Front
- 1,044 mm
- Hip Room, Front
- 1,621 mm
- Shoulder Room, Front
- 1,748 mm
Chassis & Body
- Body Material
- Steel
- Front Doors
- Conventional
- Door Handles
- Pull-up
- Mirror Type
- Conventional
- Heated Windows
- Optional
- Heat-Insulating Windows
- First Row, Front
- Antenna
- Optional
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Drum Brakes
- Anti-roll Bar
- Yes
- Number of Bolts
- 5
- Nut/Bolt Dimensions
- M14x1.5
- Fastening Type
- Lug Nuts
- Tightening Torque
- 190 Nm
- Rim Material
- Steel
- Rim Type
- Disc Wheel
Lighting
- Low Beam
- Halogen
- Main Beam
- Halogen
- Rear Lights
- Halogen
- Daytime Running Light
- Halogen
Fuel & Engine Details
- Tank Volume
- 117 l
- Compression Ratio
- 9.4 :1
Suspension & Exterior
- Independent
- Double Wishbone
- Spring, Rear
- Leaf (Longitudinal Spring)
- Folding
- Manual
- Heated
- Optional
- Intermittent Control
- Yes
Instruments & Infotainment
- Speedometer
- Analogue
- Tachometer
- Analogue
- Fuel Gauge
- Analogue
- Coolant Temperature
- Analogue
- Air Condition
- Yes
- Radio
- Optional
- Total Number of Speakers
- 2 pcs
- Anti-glare
- Manual
Interior & Controls
- Cup Holders
- Yes
- Read Light
- Optional
- Clock
- Optional
- 12V Outlet
- Front
- Cruise Control
- Optional
- Power Steering
- Hydraulic
- Number of Spokes
- 4
- Colour
- Black
- Steering Mechanism
- Rack and Pinion
- Hatch Opening Type
- Two-parted Doors
- Transmission Knob Material
- Plastic
Seats
- Power Seat, Driver
- Optional
- Armrest
- Driver, Passenger
Seatbelts
- Height Adjustable Retractor
- Yes
- Manual
- Pedal
- Three-Point-Belt
- Front Seats
Safety & Driver Assistance
- Anti-lock Braking System (ABS)
- Yes
- Immobiliser
- Optional, Yes
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Optional, Rear: -
- Airbag cut-off Switch
- Driver: -, Passenger: Optional, Rear: -
- Belt Load Limiter
- Driver: Yes, Passenger: -, Rear: -
Classification
- Australian Classification
- Van
- European Segment
- M-Segment
Quick Facts
- Fuel Type
- Gasoline
- Country
- United States
Appearances
Generation
GMT600 (1996-2002)
