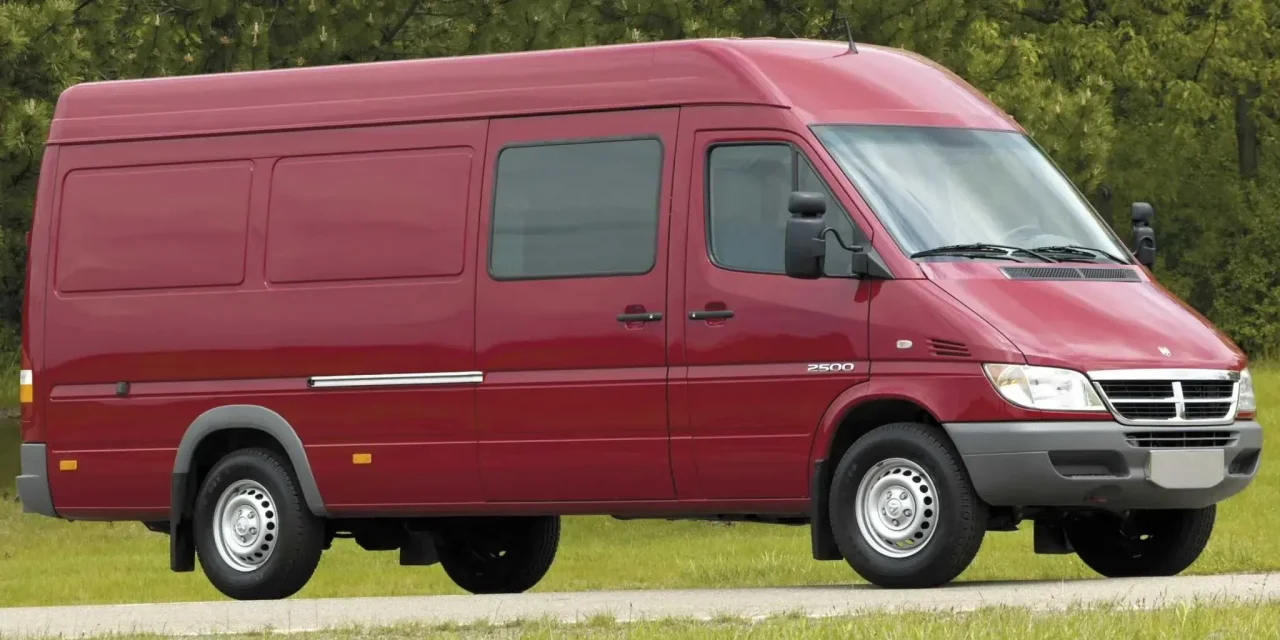

2003 Dodge Sprinter 2.7 CDI Automatic, 5-speed
- Diesel
- United States
Specifications
Vehicle Details
- Year
- 2003
- Make
- Dodge
- Model
- Sprinter
- Variation
- 2.7 CDI Automatic, 5-speed
- Generation
- 1st Generation (2003-2006)
- Seats
- 5
- Doors
- 4
- Fuel
- Diesel
- Drivetrain
- RWD
Powertrain
- Engine Name
- 2.7 I5
- Engine Configuration
- Inline
- Power (hp)
- 156 hp
- Power (kW)
- 115 kW
- Brake Horsepower
- 154 bhp
- Torque (Nm)
- 330 Nm
- Torque (lb-ft)
- 243 lb-ft
- RPM at Max Power
- 4,000 rpm
- RPM at Max Torque
- 1,600 rpm
- Displacement (cc)
- 2,685 cc
- Displacement (litres)
- 2.7 l
- Cylinders
- 5
- Valves Per Cylinder
- 4
- Bore
- 88 mm
- Stroke
- 88.3 mm
Dimensions & Weight
- Width
- 22 mm
- Track, Front
- 1,652 mm
- Track, Rear
- 1,652 mm
- Ground Clearance
- 188 - 211 mm
- Curb Weight
- 2,087 kg
- Gross Weight
- 3,878 kg
Interior Dimensions
- Head Room, Front
- 1,194 mm
- Hip Room, Front
- 1,651 mm
- Shoulder Room, Front
- 1,727 mm
Chassis & Body
- Body Material
- Steel
- Front Doors
- Conventional
- Door Handles
- Pull-out
- Mirror Type
- Conventional
- Heated Windows
- Optional
- Antenna
- Whip
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Anti-roll Bar
- Yes
- Number of Bolts
- 5
- Fastening Type
- Lug Bolts
- Tightening Torque
- 240 Nm
- Rim Type
- Disc Wheel
Lighting
- Low Beam
- Halogen
- Main Beam
- Halogen
- Rear Lights
- Halogen
- Fog Lights
- Optional
Fuel & Engine Details
- Tank Volume
- 100 l
- Compression Ratio
- 18 :1
Suspension & Exterior
- Cooling
- Ventilated
- Independent
- MacPherson Strut
- Spring, Rear
- Leaf (Longitudinal Spring)
- Adjustments
- Tilt
- Intermittent Control
- Yes
- Rear
- 22 - 25 mm
- Headlight Range Adjustment
- Manual (Electric)
Instruments & Infotainment
- Trip Computer
- Yes
- Speedometer
- Analogue
- Tachometer
- Analogue
- Fuel Gauge
- Analogue
- Coolant Temperature
- Analogue
- Number of Climate Zones
- 1
- Air Condition
- Yes
- Outside Temperature Indicator
- Yes
- Controls
- Rotary Dials
- Radio
- AM, FM
- Total Number of Speakers
- 2 pcs
Interior & Controls
- Cup Holders
- Yes
- Read Light
- Optional
- Clock
- Yes
- 12V Outlet
- Front
- Carpets
- Yes
- Power Steering
- Hydraulic
- Number of Spokes
- 4
- Material
- Plastic
- Colour
- Grey
- Steering Mechanism
- Rack and Pinion
- Hatch Opening Type
- Two-parted Doors
- Interior Decor Colour
- Grey
- Transmission Knob Material
- Plastic
Seats
- Heated Seats
- Optional
- Armrest
- Driver, Passenger
Convenience & Equipment
- Keyless Entry
- Optional
- Fire Extinguisher
- Optional
- Warning Triangle
- Optional
- First Aid Kit
- Yes
Seatbelts
- Height Adjustable Retractor
- Yes
- Manual
- Lever
- Three-Point-Belt
- Front Seats
Safety & Driver Assistance
- Electronic Stability Control (ESC)
- Yes
- Anti-lock Braking System (ABS)
- Yes
- Electronic Brakeforce Distribution (EBD)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Parking Sensors
- Optional
- Rain Sensors
- Optional
- Immobiliser
- Yes
Security
- Anti-theft Alarm
- Optional
- Central Locking
- Optional
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Belt Pretensioner
- Driver: Yes, Passenger: Yes, Rear: -
- Belt Load Limiter
- Driver: Yes, Passenger: -, Rear: -
Classification
- Australian Classification
- Van
- European Segment
- M-Segment
Quick Facts
- Fuel Type
- Diesel
- Country
- United States
Appearances
Generation
1st Generation (2003-2006)
