2003 GMC Savana G3500 Passenger Van Hydra-Matic, 4-speed
- Gasoline
- United States

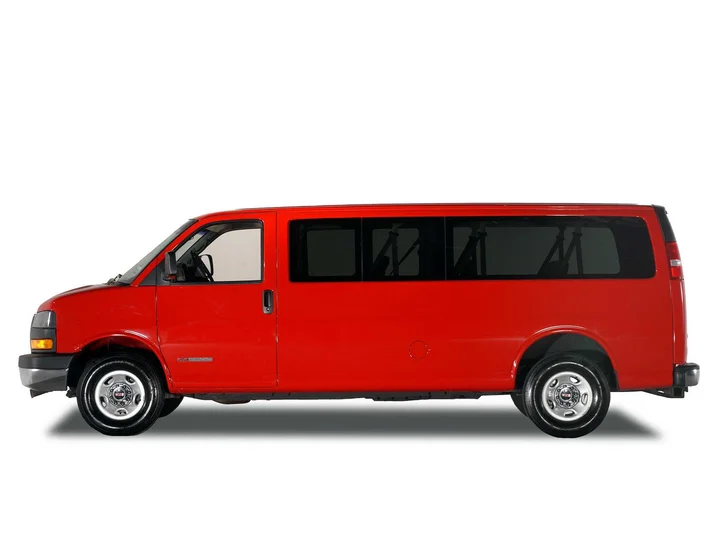

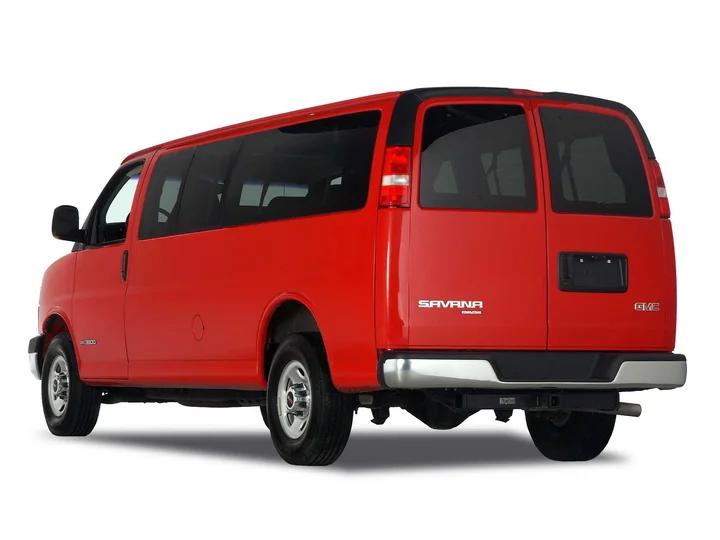

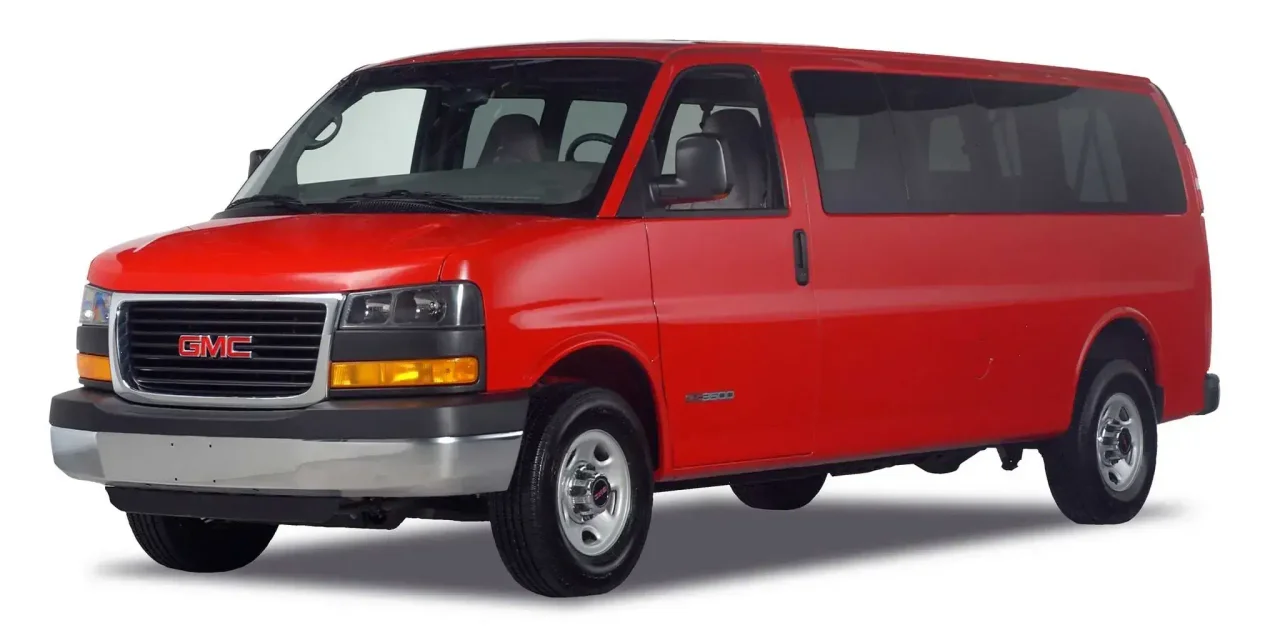

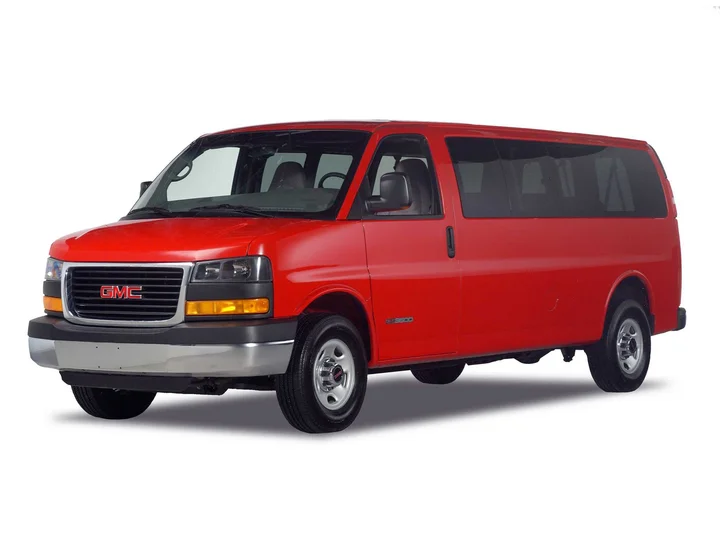

Photos
Specifications
Vehicle Details
- Year
- 2003
- Make
- GMC
- Model
- Savana
- Variation
- G3500 Passenger Van Hydra-Matic, 4-speed
- Generation
- GMT600 (1996-2002)
- Seats
- 5
- Doors
- 4
- Fuel
- Gasoline
- Drivetrain
- RWD
Powertrain
- Engine Name
- V-Engine
- Engine Configuration
- V
- Power (hp)
- 305 hp
- Power (kW)
- 224 kW
- Brake Horsepower
- 300 bhp
- Torque (Nm)
- 488 Nm
- Torque (lb-ft)
- 360 lb-ft
- RPM at Max Power
- 4,400 rpm
- RPM at Max Torque
- 4,000 rpm
- Displacement (cc)
- 5,998 cc
- Displacement (litres)
- 6.0 l
- Cylinders
- 8
- Valves Per Cylinder
- 2
- Bore
- 101.6 mm
- Stroke
- 92 mm
Performance & Efficiency
- Combined Consumption
- 12 L/100 km
Dimensions & Weight
- Width
- 30 mm
- Track, Front
- 1,721 mm
- Track, Rear
- 1,721 mm
- Ground Clearance
- 180 - 196 mm
- Curb Weight
- 2,726 - 2,871 kg
- Gross Weight
- 4,355 kg
- Cargo Capacity
- 1,483 - 1,629 kg
Interior Dimensions
- Head Room, Front
- 1,021 mm
- Head Room, Rear
- 978 mm
- Leg Room, Front
- 1,049 mm
- Leg Room, Rear
- 884 mm
- Hip Room, Front
- 1,664 mm
- Hip Room, Rear
- 1,676 mm
- Shoulder Room, Front
- 1,748 mm
- Shoulder Room, Rear
- 1,750 mm
Chassis & Body
- Body Material
- Steel
- Front Doors
- Conventional
- Door Handles
- Pull-up
- Mirror Type
- Conventional
- Heated Windows
- Optional
- Heat-Insulating Windows
- First Row, Front, Second Row
- Antenna
- Whip
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Anti-roll Bar
- Yes
- Number of Bolts
- 8
- Nut/Bolt Dimensions
- M14x1.5
- Fastening Type
- Lug Nuts
- Tightening Torque
- 190 Nm
- Rim Material
- Steel
- Rim Type
- Disc Wheel
Lighting
- Low Beam
- Halogen
- Main Beam
- Halogen
- Rear Lights
- Halogen
- Daytime Running Light
- Halogen
Fuel & Engine Details
- Tank Volume
- 117 l
- Compression Ratio
- 9.4 :1
Suspension & Exterior
- Independent
- Double Wishbone
- Spring, Rear
- Leaf (Longitudinal Spring)
- Folding
- Manual
- Heated
- Optional
- Turning Signal
- Optional
- Intermittent Control
- Yes
Instruments & Infotainment
- Speedometer
- Analogue
- Tachometer
- Analogue
- Fuel Gauge
- Analogue
- Coolant Temperature
- Analogue
- Climate Control
- Manual
- Number of Climate Zones
- 2
- Air Condition
- Yes
- Controls
- Rotary Dials
- Radio
- AM, FM
- Total Number of Speakers
- 2 - 6 pcs
Interior & Controls
- Cup Holders
- Yes
- Read Light
- Optional
- Clock
- Yes
- 12V Outlet
- Front
- Carpets
- Optional
- Cruise Control
- Optional
- Power Steering
- Hydraulic
- Number of Spokes
- 4
- Colour
- Black
- Steering Mechanism
- Recirculating Ball
- Hatch Opening Type
- Two-parted Doors
- Transmission Knob Material
- Plastic
Seats
- Power Seat, Driver
- Optional
- Power Seat, Passenger
- Optional
- Armrest
- Driver, Passenger
- Type of Seat
- Adult
Convenience & Equipment
- Keyless Entry
- Optional
- Horn
- Single Note
- Fire Extinguisher
- Optional
- Warning Triangle
- Optional
- First Aid Kit
- Optional
Seatbelts
- Height Adjustable Retractor
- Yes
- Manual
- Pedal
- Three-Point-Belt
- Front Seats, Outer Rear Seats
Safety & Driver Assistance
- Electronic Stability Control (ESC)
- Optional, Yes
- City
- 11 MPG
- Anti-lock Braking System (ABS)
- Yes
- Immobiliser
- Yes
Security
- Central Locking
- Optional
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Airbag cut-off Switch
- Driver: -, Passenger: Yes, Rear: -
- Seat Belt Reminder
- Driver: Yes, Passenger: Yes, Rear: -
- Belt Pretensioner
- Driver: Yes, Passenger: Yes, Rear: -
- Belt Load Limiter
- Driver: Yes, Passenger: -, Rear: -
Classification
- Australian Classification
- Van
- European Segment
- M-Segment
Quick Facts
- Fuel Type
- Gasoline
- Country
- United States
