2016 Hyundai Ioniq Hybrid DCT, 6-speed
- Hybrid Gasoline
- South Korea

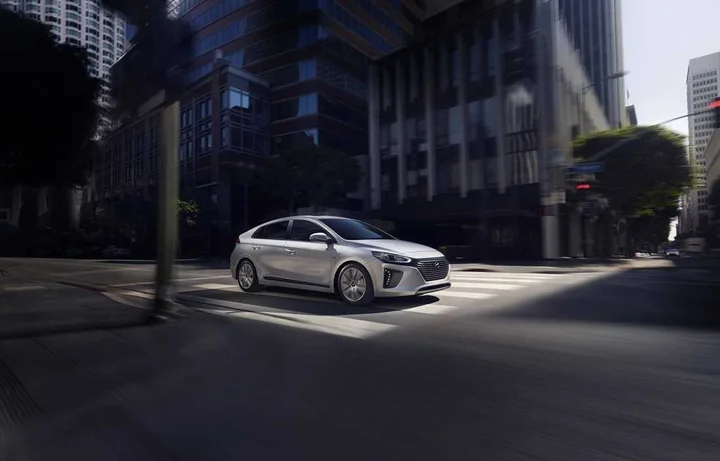

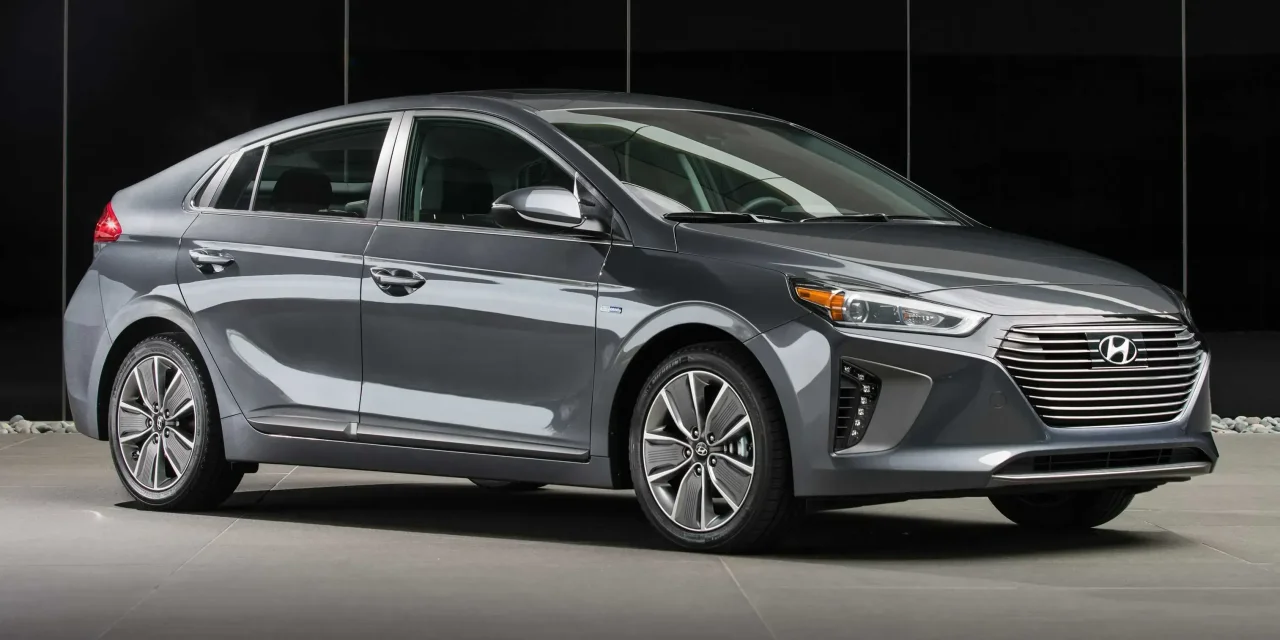

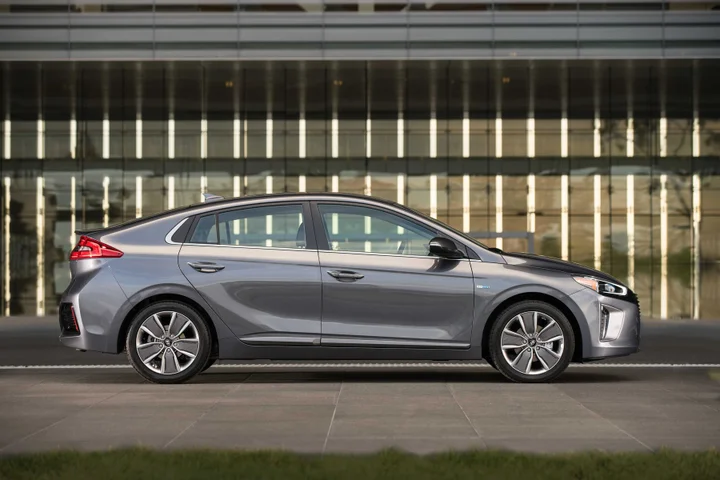

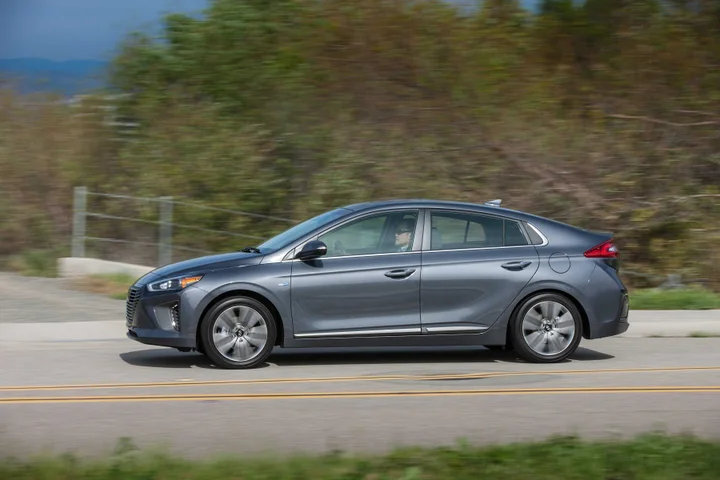

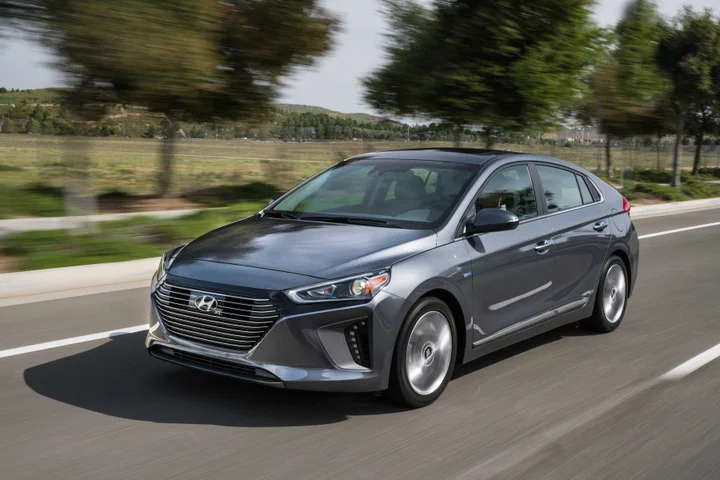

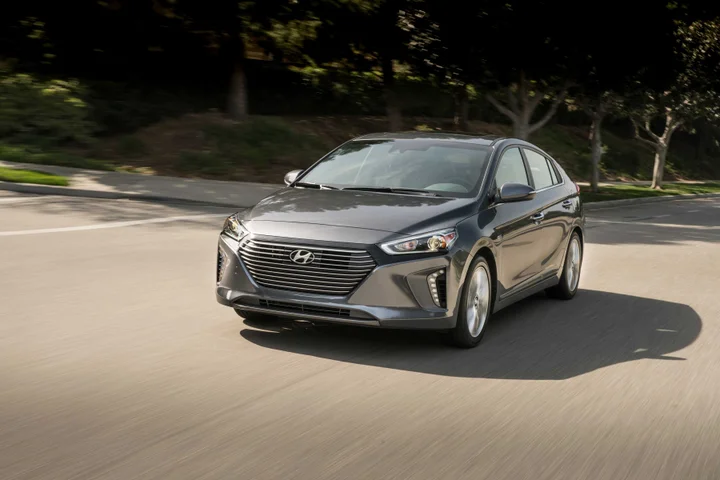

Photos
Specifications
Vehicle Details
- Year
- 2016
- Make
- Hyundai
- Model
- Ioniq
- Variation
- Hybrid DCT, 6-speed
- Generation
- AE (2016-2019)
- Seats
- 5
- Doors
- 5
- Fuel
- Hybrid Gasoline
- Drivetrain
- FWD
Powertrain
- Engine Name
- 1.6 1.56 kWh I4
- Engine Configuration
- Inline
- Power (hp)
- 141 hp
- Power (kW)
- 104 kW
- Brake Horsepower
- 139 bhp
- Torque (Nm)
- 147 Nm
- Torque (lb-ft)
- 108 lb-ft
- RPM at Max Power
- 5,700 rpm
- RPM at Max Torque
- 4,000 rpm
- Displacement (cc)
- 1,580 cc
- Displacement (litres)
- 1.6 l
- Cylinders
- 4
- Valves Per Cylinder
- 4
- Bore
- 78 mm
- Stroke
- 97 mm
Performance & Efficiency
- Top Speed (km/h)
- 185 km/h
- Top Speed (mph)
- 115 mph
- Acceleration, 0-100 km/h
- 10.8 s
- Combined Consumption
- 4.2 L/100 km
Dimensions & Weight
- Length
- 4,470 mm
- Width
- 1,820 mm
- Height
- 1,450 mm
- Wheelbase
- 2,700 mm
- Track, Front
- 1,555 mm
- Track, Rear
- 1,564 mm
- Ground Clearance
- 140 mm
- Turning Circle
- 10.6 m
- Curb Weight
- 1,445 kg
- Gross Weight
- 1,870 kg
- Cargo Capacity
- 425 kg
- Max Roof Load
- 0 kg
Interior Dimensions
- Head Room, Front
- 1,024 mm
- Head Room, Rear
- 950 mm
- Leg Room, Front
- 1,136 mm
- Leg Room, Rear
- 906 mm
- Hip Room, Front
- 1,366 mm
- Hip Room, Rear
- 1,344 mm
- Shoulder Room, Front
- 1,425 mm
- Shoulder Room, Rear
- 1,396 mm
Chassis & Body
- Front Doors
- Conventional
- Window Lifts, Front
- Powered
- Heat-Insulating Windows
- First Row, Front, Rear, Second Row
- Normal Roof
- Yes
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Number of Bolts
- 5
- Bolt Distance
- 114.3
- Nut/Bolt Dimensions
- M12x1.5
- Central Bore, Front
- 67.1
- Tightening Torque
- 108 Nm
- Rim Type
- Disc Wheel
Fuel & Engine Details
- Tank Volume
- 45 l
- Compression Ratio
- 13 :1
Electric
- Electric Vehicle Type
- Hybrid
- Battery Capacity
- 1.56 kWh
Suspension & Exterior
- Cooling
- Ventilated
- Heated
- Optional
- Turning Signal
- Yes
Instruments & Infotainment
- Trip Computer
- Yes
- Climate Control
- Automatic
- Number of Climate Zones
- 2
- Air Condition
- Yes
- Pollen Filter
- Yes
- Outside Temperature Indicator
- Yes
- Radio
- Yes
- App-Connect
- Optional, Yes
- Bluetooth
- Yes
- Center Display
- Optional
Interior & Controls
- Multifunction Steering Wheel
- Yes
- Cruise Control
- Adaptive Cruise Control
- Rear Trunk
- Yes
- Volume
- 563 l
Seats
- Heated Seats
- Optional
- Collapsible
- Yes
Convenience & Equipment
- Keyless Start
- Yes
- GPS
- Optional
Seatbelts
- Height Adjustable Retractor
- Yes
- Manual
- Yes
- Three-Point-Belt
- Centre Rear Seat, Front Seats, Outer Rear Seats
Safety & Driver Assistance
- Electronic Stability Control (ESC)
- Yes
- Lane Assist System
- Yes
- Lane Departure Warning (LDW)
- Yes
- Autonomous Emergency Brake System (AEB)
- Yes
- City
- 3.8 l/100km
- Inter-urban
- Yes
- Anti-lock Braking System (ABS)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Parking Sensors
- Rear
- Blind Spot Detection (BLIS)
- Optional
- Rain Sensors
- Optional
- Immobiliser
- Yes
Security
- Anti-theft Alarm
- Yes
- Central Locking
- Yes
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Chest Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Head Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Knee Airbag
- Driver: Yes, Passenger: -, Rear: -
- Airbag cut-off Switch
- Driver: -, Passenger: Yes, Rear: -
- Seat Belt Reminder
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Pretensioner
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Load Limiter
- Driver: Yes, Passenger: Yes, Rear: Yes
Classification
- Australian Classification
- Small Car
- European Segment
- C-Segment
Quick Facts
- Fuel Type
- Hybrid Gasoline
- Country
- South Korea
Appearances
Generation
AE (2016-2019)
