2016 Jaguar XF 20d
- Diesel
- United Kingdom

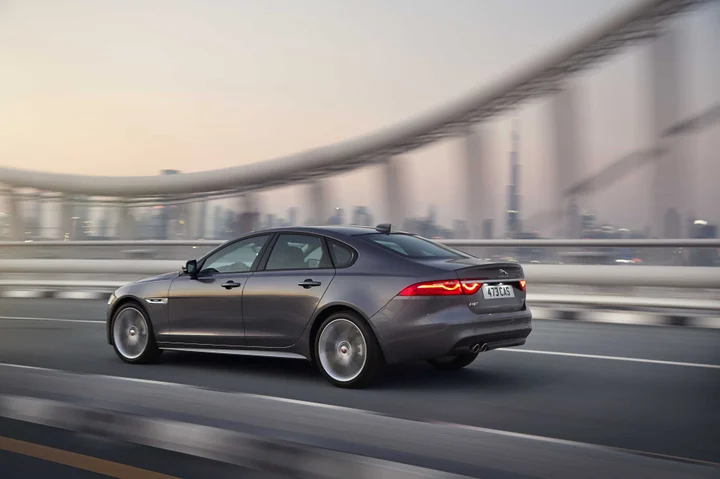

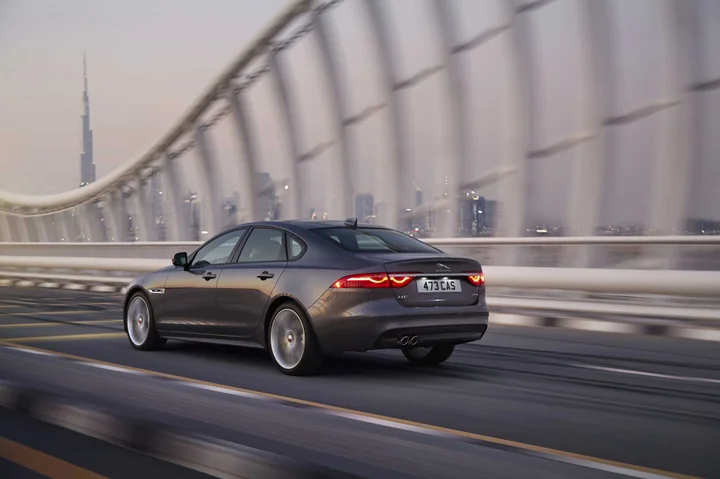

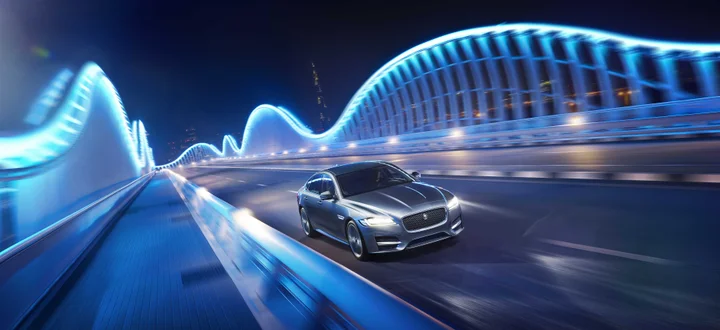

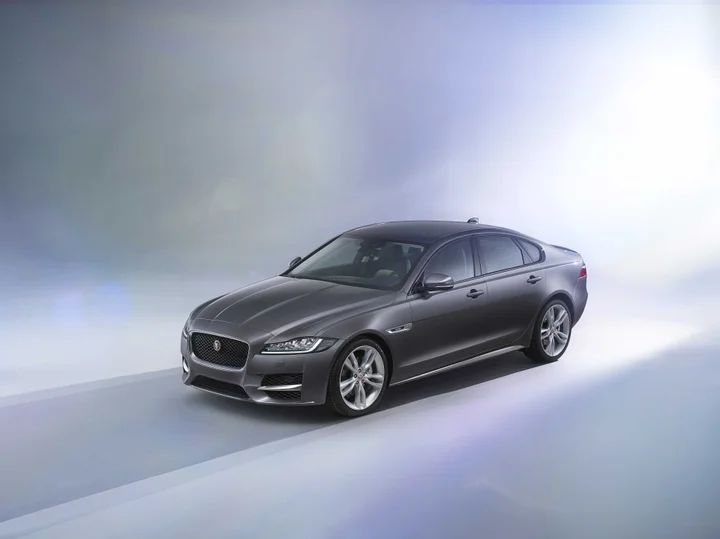

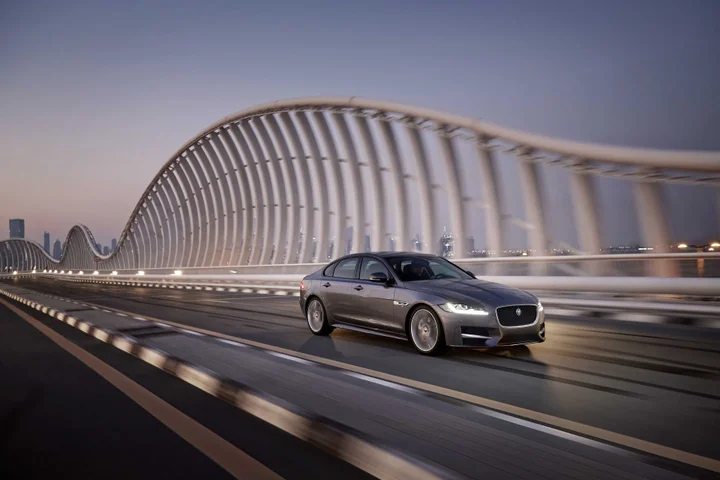

Photos
Specifications
Vehicle Details
- Year
- 2016
- Make
- Jaguar
- Model
- XF
- Variation
- 20d
- Generation
- X250 (2008-2011)
- Seats
- 5
- Doors
- 4
- Fuel
- Diesel
- Drivetrain
- RWD
Powertrain
- Engine Name
- 2.0 I4
- Engine Configuration
- Inline
- Power (hp)
- 180 hp
- Power (kW)
- 132 kW
- Brake Horsepower
- 177 bhp
- Torque (Nm)
- 430 Nm
- Torque (lb-ft)
- 317 lb-ft
- RPM at Max Power
- 4,000 rpm
- RPM at Max Torque
- 1,750 rpm
- Displacement (cc)
- 1,999 cc
- Displacement (litres)
- 2.0 l
- Cylinders
- 4
- Valves Per Cylinder
- 4
- Bore
- 83 mm
- Stroke
- 92.4 mm
Performance & Efficiency
- Top Speed (km/h)
- 229 km/h
- Top Speed (mph)
- 142 mph
- Acceleration, 0-100 km/h
- 8 s
- Combined Consumption
- 4.3 L/100 km
Dimensions & Weight
- Length
- 4,950 mm
- Width
- 1,880 mm
- Height
- 1,460 mm
- Wheelbase
- 2,960 mm
- Track, Front
- 1,610 mm
- Track, Rear
- 1,590 mm
- Ground Clearance
- 120 mm
- Turning Circle
- 11.6 m
- Curb Weight
- 1,585 - 1,595 kg
- Gross Weight
- 2,250 kg
- Cargo Capacity
- 655 - 665 kg
- Max Roof Load
- 75 kg
Interior Dimensions
- Head Room, Front
- 991 mm
- Head Room, Rear
- 970 mm
- Leg Room, Front
- 1,054 mm
- Leg Room, Rear
- 957 mm
Chassis & Body
- Front Doors
- Conventional
- Mirror Type
- Conventional
- Window Lifts, Front
- Powered
- Heated Windows
- Rear
- Heat-Insulating Windows
- First Row, Front, Rear, Second Row
- Normal Roof
- Yes
- Antenna
- Yes
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Tire Pressure Monitoring System
- Yes
- Number of Bolts
- 5
- Bolt Distance
- 108
- Nut/Bolt Dimensions
- M12x1.5
- Central Bore, Front
- 63.4
- Fastening Type
- Lug Nuts
- Tightening Torque
- 125 Nm
- Rim Type
- Disc Wheel
Lighting
- Rear Lights
- LED
- Daytime Running Light
- LED
Fuel & Engine Details
- Tank Volume
- 66 l
- Compression Ratio
- 15.5 :1
Suspension & Exterior
- Cooling
- Ventilated
- Adjustments
- Electrical
- Heated
- Yes
- Turning Signal
- Yes
- Intermittent Control
- Yes
- Rear
- Optional
- Special Features
- Headlight Washers, Main Beam Assist
Instruments & Infotainment
- Trip Computer
- Yes
- Climate Control
- Automatic
- Air Condition
- Yes
- Pollen Filter
- Yes
- Outside Temperature Indicator
- Yes
- Radio
- AM, DAB, FM, HD Radio
- Bluetooth
- Audio, Phone
- Center Display
- 10.2 - 8"
- Center Display Controls
- Touchscreen
- Total Number of Speakers
- 11 - 17 pcs
- Speaker Brand
- Meridian
- Adjustments
- Mechanical
- Anti-glare
- Automatic
- Rear-view Mirror: Mirror Type
- Standard
Interior & Controls
- Cup Holders
- Yes
- Read Light
- Front, Rear
- Guide Light
- Entry Guard
- Make-up Mirror
- Driver Side, Passenger Side
- Clock
- Yes
- 12V Outlet
- Front, Trunk
- Carpets
- Optional
- Multifunction Steering Wheel
- Yes
- Cruise Control
- Yes
- Heated
- Optional
- Power Steering
- Yes
- Material
- Leather
- Colour
- Black
- Steering Mechanism
- Rack and Pinion
- Rear Trunk
- Yes
- Volume
- 505 l
Seats
- Power Seat, Driver
- Yes
- Power Seat, Passenger
- Yes
- Heated Seats
- Optional
- Armrest
- Yes
- Ventilated Seats
- Optional
Convenience & Equipment
- Keyless Entry
- Optional
- Keyless Start
- Yes
- Cameras
- Rear
- View Location
- Center Display
- Voice Control
- Media, Phone
- Wireless Phone Charger
- Optional
- GPS
- Optional
- Horn
- Dual Note
- Tire Repair Kit
- Yes
- Compressor
- Optional
- Fire Extinguisher
- Optional
- Warning Triangle
- Yes
- First Aid Kit
- Optional
Seatbelts
- Height Adjustable Retractor
- Yes
- Manual
- Yes
- Three-Point-Belt
- Centre Rear Seat, Front Seats, Outer Rear Seats
Safety & Driver Assistance
- Electronic Stability Control (ESC)
- Yes
- Lane Assist System
- Optional
- Sign Assist
- Optional
- Emergency Stop Signal (ESS)
- Yes
- Autonomous Emergency Brake System (AEB)
- Yes
- City
- 5.1 – 5.2 l/100km
- Inter-urban
- Yes
- Anti-lock Braking System (ABS)
- Four-channel
- Electronic Brakeforce Distribution (EBD)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Parking Sensors
- Optional
- Blind Spot Detection (BLIS)
- Optional
- Light Sensor
- Yes
- Rain Sensors
- Yes
- Immobiliser
- Yes
- Electronic
- Yes
Security
- Anti-theft Alarm
- Yes
- Central Locking
- Remote
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Chest Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Head Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Curtain Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Airbag cut-off Switch
- Driver: -, Passenger: Yes, Rear: -
- Seat Belt Reminder
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Pretensioner
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Load Limiter
- Driver: Yes, Passenger: Yes, Rear: Yes
Classification
- Australian Classification
- Large Car
- European Segment
- E-Segment
Quick Facts
- Fuel Type
- Diesel
- Country
- United Kingdom
Appearances
Generation
X250 (2008-2011)
