2016 Volvo XC60 D4 AWD
- Diesel
- Sweden

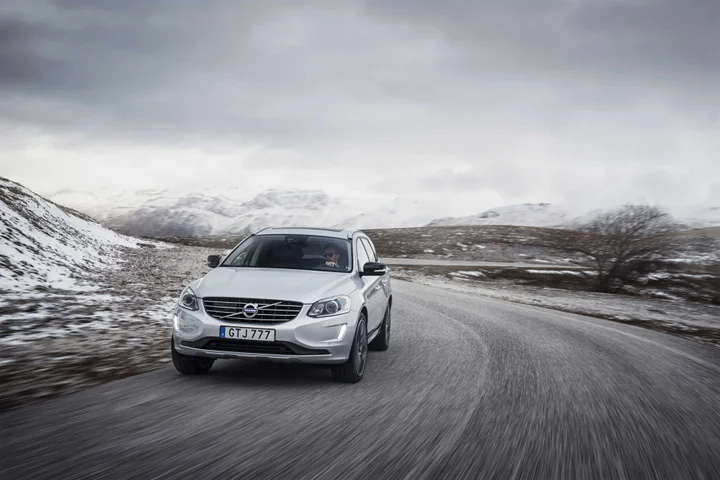

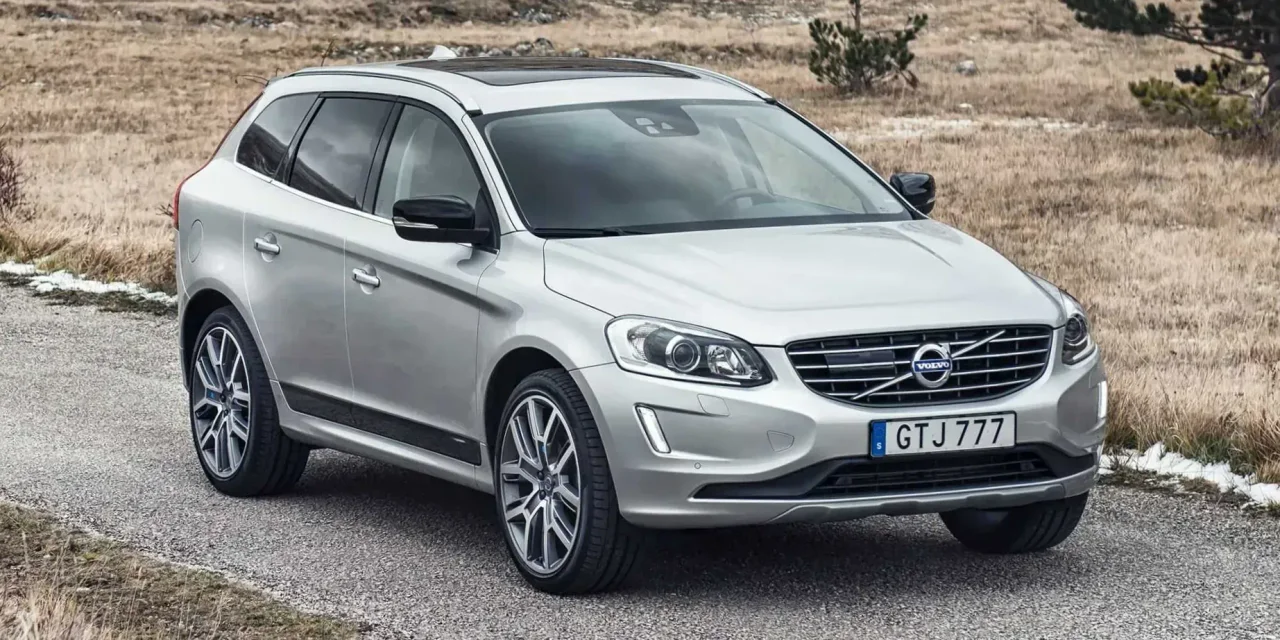

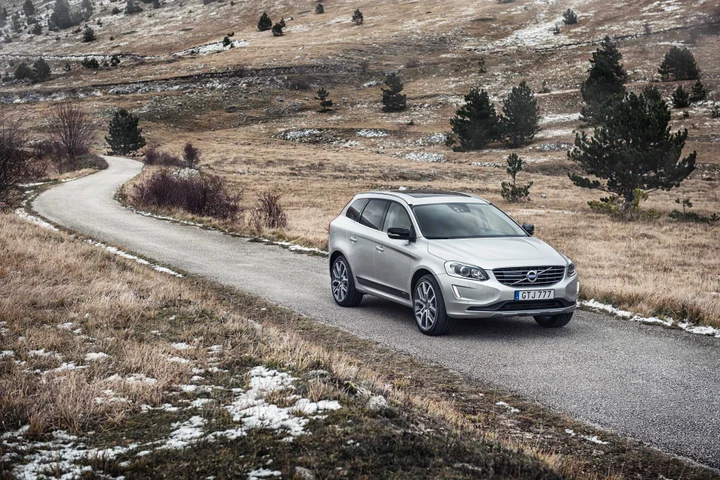

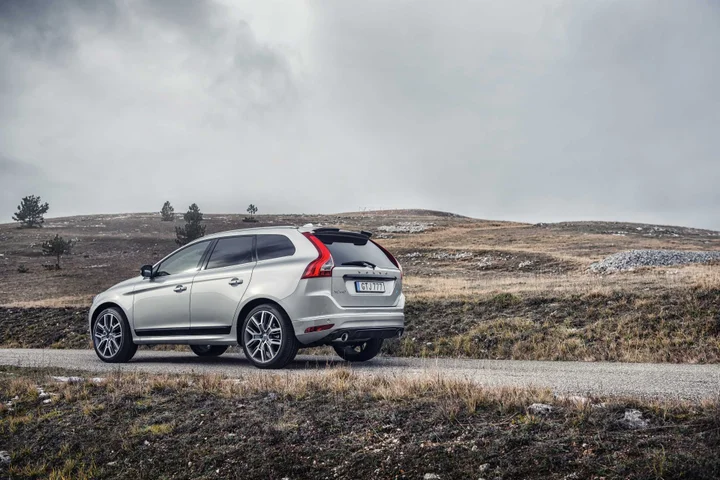

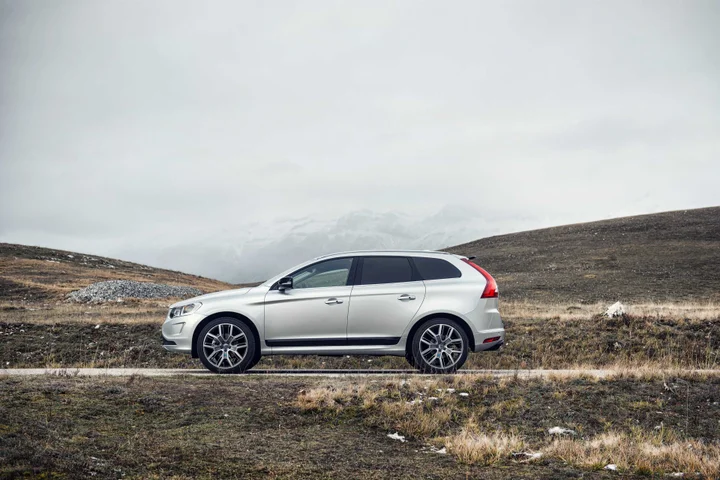

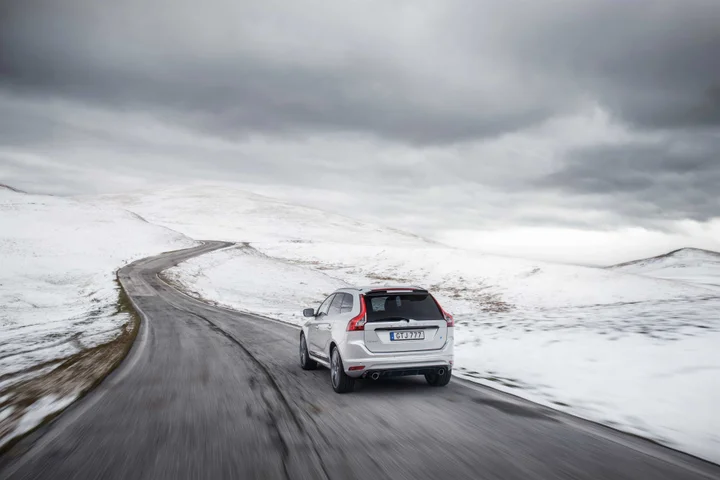

Photos
Specifications
Vehicle Details
- Year
- 2016
- Make
- Volvo
- Model
- XC60
- Variation
- D4 AWD
- Generation
- 1st Generation (2012-present)
- Seats
- 5
- Doors
- 5
- Fuel
- Diesel
- Drivetrain
- AWD
Powertrain
- Engine Name
- 2.4 I5
- Engine Configuration
- Inline
- Power (hp)
- 190 hp
- Power (kW)
- 140 kW
- Brake Horsepower
- 188 bhp
- Torque (Nm)
- 420 Nm
- Torque (lb-ft)
- 310 lb-ft
- RPM at Max Power
- 4,000 rpm
- RPM at Max Torque
- 1,500 rpm
- Displacement (cc)
- 2,400 cc
- Displacement (litres)
- 2.4 l
- Cylinders
- 5
- Valves Per Cylinder
- 4
- Bore
- 81 mm
- Stroke
- 93.2 mm
Performance & Efficiency
- Top Speed (km/h)
- 200 km/h
- Top Speed (mph)
- 124 mph
- Acceleration, 0-100 km/h
- 9.6 s
- Combined Consumption
- 5.2 - 5.7 L/100 km
Dimensions & Weight
- Length
- 4,644 mm
- Width
- 1,891 mm
- Height
- 802 mm
- Wheelbase
- 2,774 mm
- Track, Front
- 1,632 mm
- Track, Rear
- 1,586 mm
- Ground Clearance
- 230 mm
- Turning Circle
- 11.7 m
- Curb Weight
- 1,873 - 1,908 kg
- Gross Weight
- 2,505 kg
- Cargo Capacity
- 584 - 611 kg
- Max Roof Load
- 100 kg
Interior Dimensions
- Head Room, Front
- 1,025 mm
- Head Room, Rear
- 730 mm
- Leg Room, Front
- 1,047 mm
- Leg Room, Rear
- 924 mm
- Shoulder Room, Front
- 1,439 mm
- Shoulder Room, Rear
- 1,403 mm
Chassis & Body
- Front Doors
- Conventional
- Mirror Type
- Conventional
- Window Lifts, Front
- Powered
- Heated Windows
- Rear
- Heat-Insulating Windows
- First Row, Front, Rear, Second Row
- Antenna
- Shark Fin
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Tire Pressure Monitoring System
- Yes
- Number of Bolts
- 5
- Bolt Distance
- 108
- Nut/Bolt Dimensions
- M14x1.5
- Central Bore, Front
- 63.4
- Fastening Type
- Lug Bolts
- Tightening Torque
- 140 Nm
- Rim Material
- Alloy
- Rim Type
- Disc Wheel
Lighting
- Low Beam
- H7
- Main Beam
- H9
- Daytime Running Light
- LED
- Fog Lights
- Yes
Fuel & Engine Details
- Tank Volume
- 70 l
- Compression Ratio
- 16.5 :1
Suspension & Exterior
- Cooling
- Ventilated
- Independent
- Yes
- Adjustments
- Electrical
- Heated
- Yes
- Turning Signal
- Yes
- Rear
- Yes
- Special Features
- Headlight Range Adjustment
Instruments & Infotainment
- Trip Computer
- Yes
- Speedometer
- Analogue
- Tachometer
- Analogue
- Fuel Gauge
- Digital
- Coolant Temperature
- Analogue
- Climate Control
- Automatic
- Number of Climate Zones
- 2
- Air Condition
- Yes
- Pollen Filter
- Yes
- Outside Temperature Indicator
- Yes
- Controls
- Buttons, Rotary Dials
- Radio
- AM, FM
- Bluetooth
- Optional
- Center Display
- 5 - 7"
- Center Display Controls
- Buttons, Rotary Dial
- Total Number of Speakers
- 6 - 12 pcs
- Subwoofer
- Optional
- Adjustments
- Telescope, Tilt
Interior & Controls
- Cup Holders
- Yes
- Read Light
- Front, Rear
- Guide Light
- Yes
- Ambient Light
- Yes
- Make-up Mirror
- Driver Side, Passenger Side
- Clock
- Yes
- 12V Outlet
- Front, Rear
- Carpets
- Yes
- Multifunction Steering Wheel
- Yes
- Cruise Control
- Speed Up/Down (Buttons)
- Heated
- Optional
- Power Steering
- Yes
- Steering Mechanism
- Rack and Pinion
- Rear Trunk
- Yes
- Volume
- 495 l
- Hatch Opening Type
- From Roof
- Transmission Knob Material
- Leather
Seats
- Power Seat, Driver
- Optional
- Power Seat, Passenger
- Optional
- Heated Seats
- Optional
- Armrest
- Middle
- Type of Seat
- Adult
- Collapsible
- Manual
Convenience & Equipment
- Keyless Entry
- Optional
- Keyless Start
- Optional
- Cruise Control
- Optional
- Cameras
- Optional
- Voice Control
- Yes
- GPS
- Optional
- Driving Mode Selection
- Optional
- Warning Triangle
- Yes
- First Aid Kit
- Yes
Safety & Driver Assistance
- Electronic Stability Control (ESC)
- Yes
- Forward Collision Warning (FCW)
- Optional
- Lane Assist System
- Yes
- Lane Departure Warning (LDW)
- Yes
- Sign Assist
- Optional
- City
- 5.9 – 6.7 l/100km
- Anti-lock Braking System (ABS)
- Four-channel
- Electronic Brakeforce Distribution (EBD)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Differential Lock
- Electronic
- Parking Sensors
- Optional
- Blind Spot Detection (BLIS)
- Optional
- Rain Sensors
- Optional
- Immobiliser
- Yes
- Electronic
- Yes
Security
- Anti-theft Alarm
- Optional
- Central Locking
- Remote
- Emergency Call
- Optional
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Chest Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Head Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Curtain Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Airbag cut-off Switch
- Driver: -, Passenger: Optional, Rear: -
- Seat Belt Reminder
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Pretensioner
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Load Limiter
- Driver: Yes, Passenger: Yes, Rear: Yes
Classification
- Australian Classification
- Medium SUV
- European Segment
- J-Segment JC-Segment
Quick Facts
- Fuel Type
- Diesel
- Country
- Sweden
Appearances
Generation
1st Generation (2012-present)
