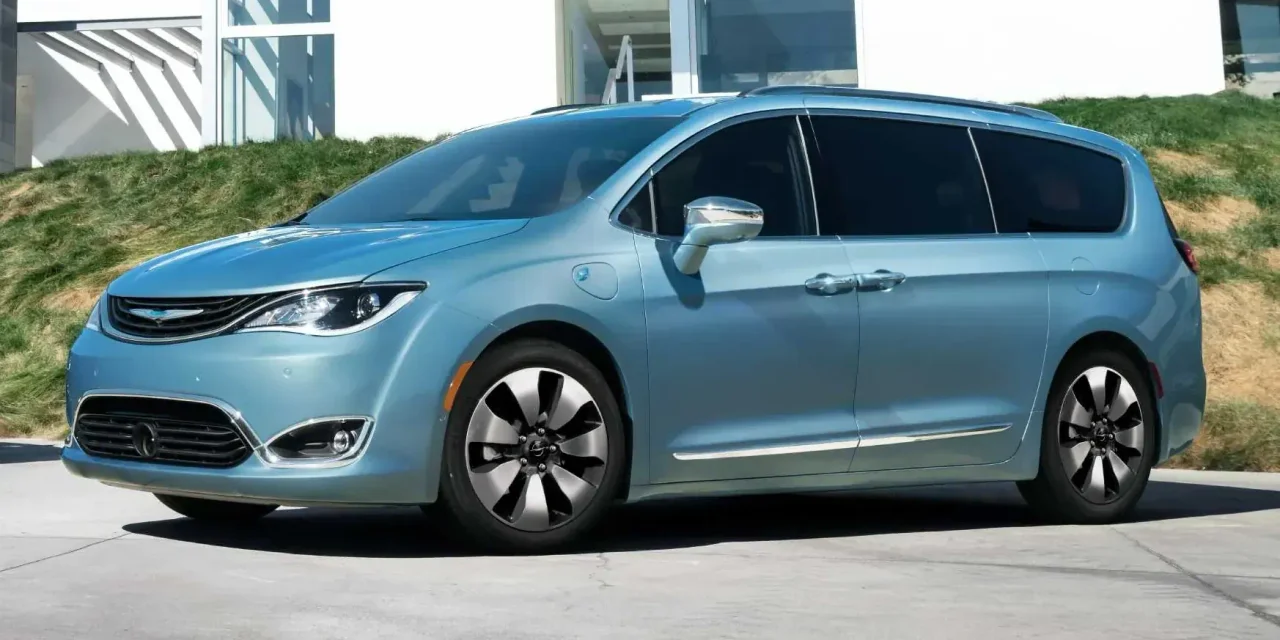

2017 Chrysler Pacifica 3.6 V6 PHEV E-CVT
- Plug-in Hybrid E85
- United States

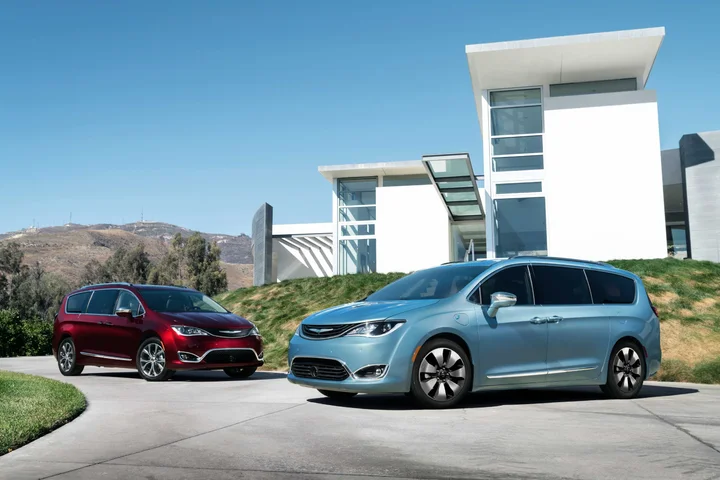

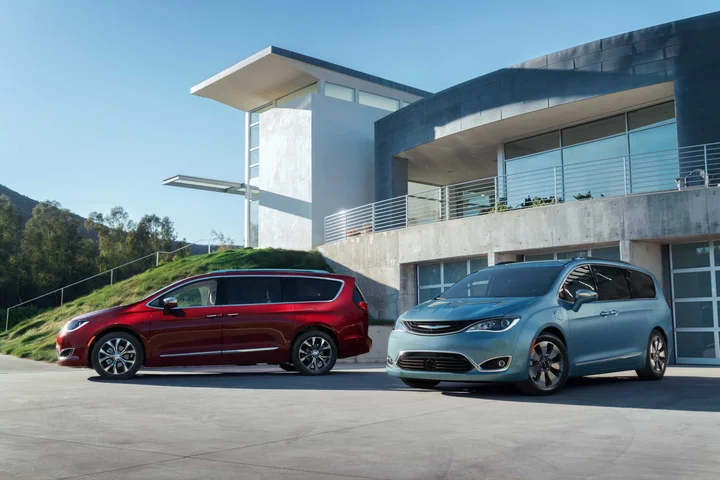

Photos
Specifications
Vehicle Details
- Year
- 2017
- Make
- Chrysler
- Model
- Pacifica
- Variation
- 3.6 V6 PHEV E-CVT
- Generation
- RU 2nd Facelift (2027-present)
- Seats
- 7
- Doors
- 5
- Fuel
- Plug-in Hybrid E85
- Drivetrain
- FWD
Powertrain
- Engine Name
- 3.6 16 kWh V6
- Engine Configuration
- V
- Power (hp)
- 264 hp
- Power (kW)
- 194 kW
- Brake Horsepower
- 260 bhp
- Torque (Nm)
- 312 Nm
- Torque (lb-ft)
- 230 lb-ft
- RPM at Max Power
- 5,800 rpm
- RPM at Max Torque
- 5,800 rpm
- Displacement (cc)
- 3,605 cc
- Displacement (litres)
- 3.6 l
- Cylinders
- 6
- Valves Per Cylinder
- 4
- Bore
- 96 mm
- Stroke
- 83 mm
Performance & Efficiency
- Combined Consumption
- 8 L/100 km
Dimensions & Weight
- Length
- 5,176 mm
- Width
- 28 mm
- Width With Mirrors
- 2,297 mm
- Height
- 1,777 mm
- Wheelbase
- 3,089 mm
- Track, Front
- 1,734 - 1,735 mm
- Track, Rear
- 1,735 - 1,736 mm
- Ground Clearance
- 130 - 131 mm
- Turning Circle
- 12.1 m
- Curb Weight
- 2,262 kg
- Gross Weight
- 2,858 kg
- Cargo Capacity
- 596 kg
- Max Roof Load
- 70 kg
Interior Dimensions
- Head Room, Front
- 1,020 mm
- Head Room, Rear
- 1,006 mm
- Leg Room, Front
- 1,045 mm
- Leg Room, Rear
- 992 mm
- Hip Room, Front
- 1,500 mm
- Hip Room, Rear
- 1,647 mm
- Shoulder Room, Front
- 1,622 mm
- Shoulder Room, Rear
- 1,602 mm
Chassis & Body
- Front Doors
- Conventional
- Window Lifts, Front
- Powered
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Number of Bolts
- 5
- Bolt Distance
- 127
- Nut/Bolt Dimensions
- M12x1.5
- Central Bore, Front
- 71.5
- Fastening Type
- Lug Nuts
- Tightening Torque
- 135 Nm
Lighting
- Low Beam
- Halogen
- Main Beam
- Halogen
- Fog Lights
- Yes
Fuel & Engine Details
- Tank Volume
- 62.5 l
- Compression Ratio
- 10.2 :1
Electric
- Electric Vehicle Type
- Plug-in Hybrid
- Battery Capacity
- 16 kWh
- Electric Range (km)
- 53 km
- Electric Range (mi)
- 33 mi
Suspension & Exterior
- Cooling
- Ventilated
- Independent
- MacPherson Strut
- Independent
- Yes
- Folding
- Electrical
- Heated
- Yes
- Rear
- Yes
Instruments & Infotainment
- Trip Computer
- Yes
- Tachometer
- Analogue
- Climate Control
- Automatic
- Air Condition
- Yes
- Pollen Filter
- Yes
- Outside Temperature Indicator
- Yes
- Radio
- Yes
- App-Connect
- Android Auto, Apple CarPlay
- Bluetooth
- Yes
- Center Display
- Optional
Interior & Controls
- Multifunction Steering Wheel
- Yes
- Cruise Control
- Yes
- Heated
- Optional
- Rear Trunk
- Yes
- Volume
- 915 l
Seats
- Power Seat, Driver
- Yes
- Power Seat, Passenger
- Optional
- Heated Seats
- Optional
- Type of Seat
- Adult
- Collapsible
- Yes
Convenience & Equipment
- Keyless Start
- Optional
- GPS
- Optional
Safety & Driver Assistance
- Electronic Stability Control (ESC)
- Yes
- Lane Departure Warning (LDW)
- Optional
- City
- 8 l/100km
- Anti-lock Braking System (ABS)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Parking Sensors
- Optional
- Blind Spot Detection (BLIS)
- Yes
- Rain Sensors
- Optional
- Immobiliser
- Yes
Security
- Anti-theft Alarm
- Yes
- Central Locking
- Yes
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Chest Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
Classification
- Australian Classification
- People Mover
- European Segment
- M-Segment
Quick Facts
- Fuel Type
- Plug-in Hybrid E85
- Country
- United States
