2021 Ford S-Max Hybrid E-CVT

  • Hybrid Gasoline
  • United States
8.9

12 Reviews

Ford
United States

United States

190hp

Power

WS Facelift

Generation

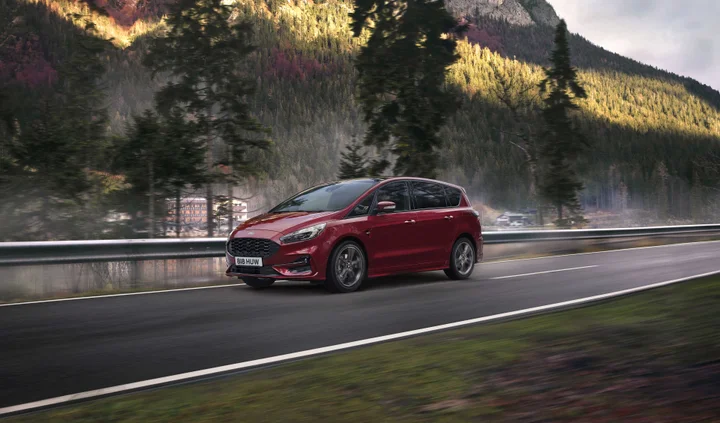

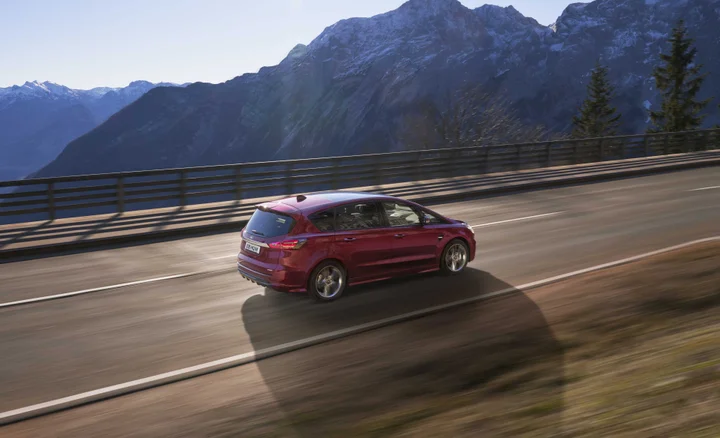

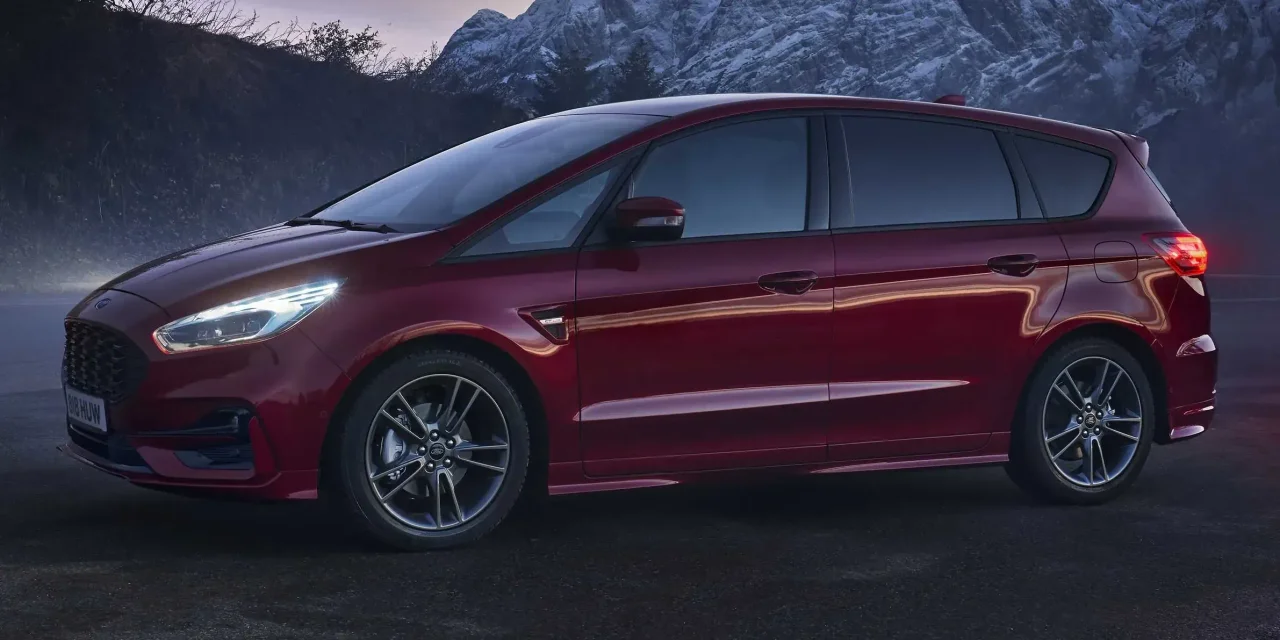

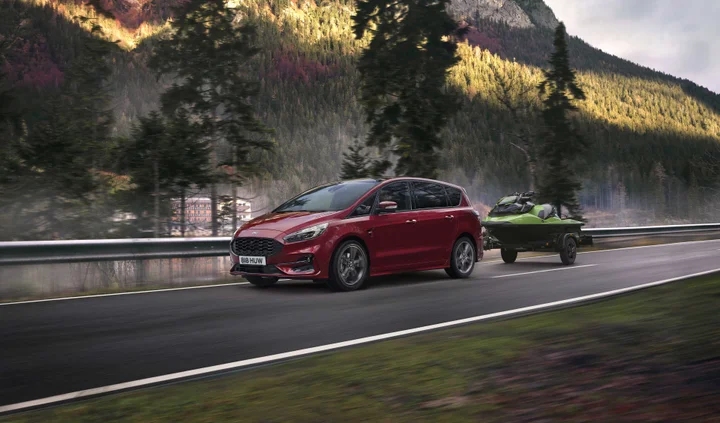

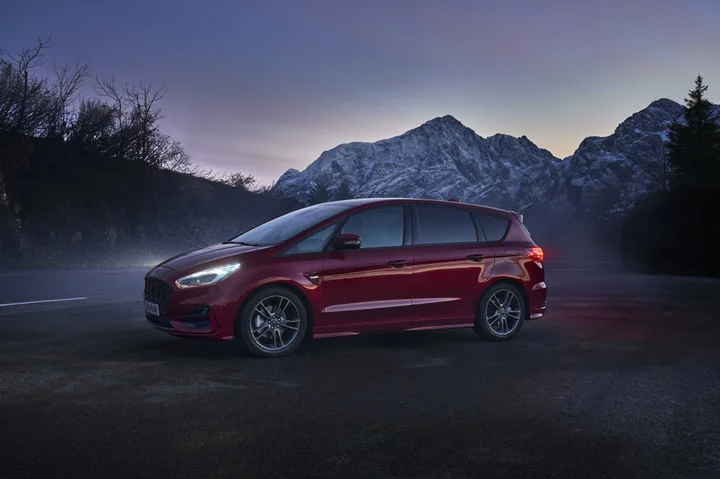

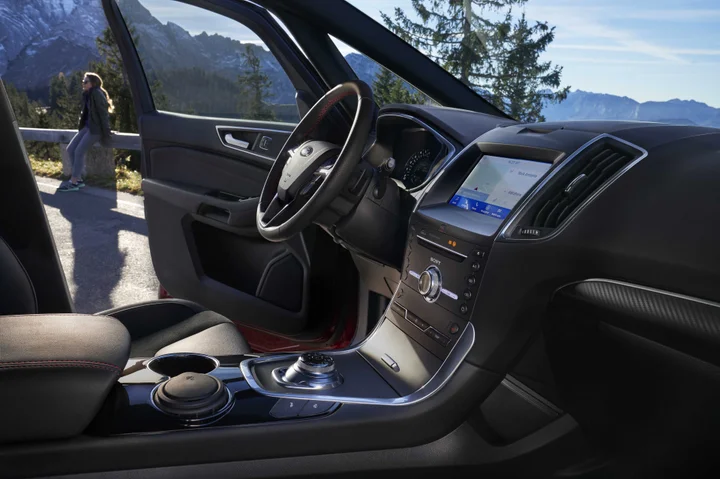

Photos

Specifications

Vehicle Details

Year
2021
Make
Ford
Model
S-Max
Variation
Hybrid E-CVT
Generation
WS Facelift (2011-2015)
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
FWD

Powertrain

Engine Name
2.5 1.10 kWh I4
Engine Configuration
Inline
Power (hp)
190 hp
Power (kW)
140 kW
Brake Horsepower
188 bhp
Torque (Nm)
200 Nm
Torque (lb-ft)
148 lb-ft
RPM at Max Power
5,500 rpm
Displacement (cc)
2,480 cc
Displacement (litres)
2.5 l
Cylinders
4
Valves Per Cylinder
4
Bore
89 mm
Stroke
100 mm

Performance & Efficiency

Top Speed (km/h)
185 km/h
Top Speed (mph)
115 mph
Acceleration, 0-100 km/h
9.8 s
Combined Consumption
5.6 L/100 km

Dimensions & Weight

Length
4,804 mm
Width
28 mm
Width With Mirrors
2,137 mm
Height
1,655 mm
Wheelbase
2,850 mm
Track, Front
1,606 mm
Track, Rear
1,606 mm
Ground Clearance
140 - 143 mm
Turning Circle
11.6 m
Curb Weight
1,902 - 1,947 kg
Gross Weight
2,350 - 2,545 kg
Cargo Capacity
448 kg
Max Roof Load
75 kg

Interior Dimensions

Head Room, Front
996 - 1,022 mm
Head Room, Rear
953 - 971 mm
Leg Room, Front
1,081 mm
Leg Room, Rear
1,046 mm
Hip Room, Front
1,431 mm
Hip Room, Rear
1,470 mm
Shoulder Room, Front
1,531 mm
Shoulder Room, Rear
1,535 mm

Chassis & Body

Front Doors
Conventional
Mirror Type
Conventional
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
First Row, Front, Rear, Second Row
Normal Roof
Yes
Antenna
Shark Fin

Brakes & Wheels

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Tire Pressure Monitoring System
Optional
Number of Bolts
5
Bolt Distance
108
Nut/Bolt Dimensions
M14x1.5
Central Bore, Front
63.4
Central Bore, Rear
63.4
Fastening Type
Lug Nuts
Tightening Torque
220 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Lighting

Low Beam
H7
Main Beam
H15

Fuel & Engine Details

Tank Volume
65 l
Compression Ratio
13 :1

Electric

Electric Vehicle Type
Hybrid
Battery Capacity
1.1 kWh

Suspension & Exterior

Cooling
Ventilated
Adjustments
Electrical
Folding
Electrical
Heated
Optional
Anti-Theft Locking Lug Nuts/Bolts
Optional

Instruments & Infotainment

Trip Computer
Yes
Fuel Gauge
Digital
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Radio
AM, FM
Bluetooth
Phone
Center Display
Yes
Adjustments
Telescope, Tilt

Interior & Controls

Cup Holders
Yes
Read Light
Front, Rear
Make-up Mirror
Driver Side
Clock
Analogue
12V Outlet
Front
Multifunction Steering Wheel
Yes
Menu Navigation
Yes
Power Steering
Yes
Number of Spokes
3
Colour
Black
Rear Trunk
Yes
Volume
965 l

Seats

Type of Seat
Adult
Collapsible
Yes

Convenience & Equipment

Warning Triangle
Yes
First Aid Kit
Optional

Seatbelts

Three-Point-Belt
Front Seats, Outer Rear Seats

Safety & Driver Assistance

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
City
6.3 l/100km
Anti-lock Braking System (ABS)
Four-channel
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Light Sensor
Yes
Rain Sensors
Yes
Immobiliser
Yes

Security

Anti-theft Alarm
Optional
Central Locking
Remote

Airbags & Restraints

Frontal Airbag
Driver: Yes, Passenger: Yes, Rear: -
Side Chest Airbag
Driver: Yes, Passenger: Yes, Rear: Yes
Side Head Airbag
Driver: Yes, Passenger: Yes, Rear: Yes
Knee Airbag
Driver: Yes, Passenger: -, Rear: -
Airbag cut-off Switch
Driver: -, Passenger: Yes, Rear: -
Seat Belt Reminder
Driver: Yes, Passenger: Yes, Rear: -
Belt Pretensioner
Driver: Yes, Passenger: Yes, Rear: -
Belt Load Limiter
Driver: Yes, Passenger: Yes, Rear: -

Classification

Australian Classification
People Mover
European Segment
M-Segment

Quick Facts

Fuel Type
Hybrid Gasoline
Country
United States

Appearances

Top Gear

TV Show

Jay Leno's Garage

TV Show

Gran Turismo 7

Video Game

Forza Motorsport

Video Game

Generation

WS Facelift (2011-2015)
