2022 Toyota RAV4 Plug-in Hybrid E-
- Plug-in Hybrid Gasoline
- Japan

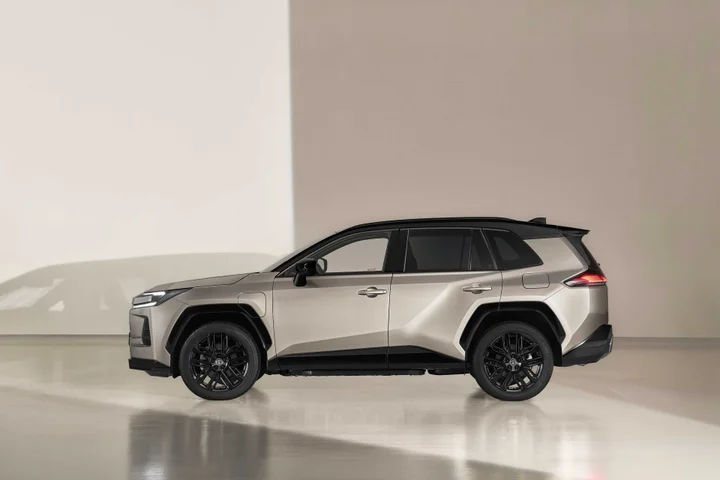

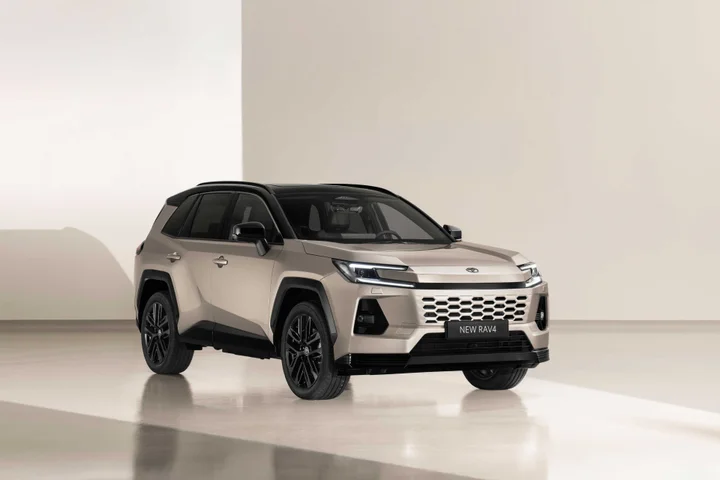

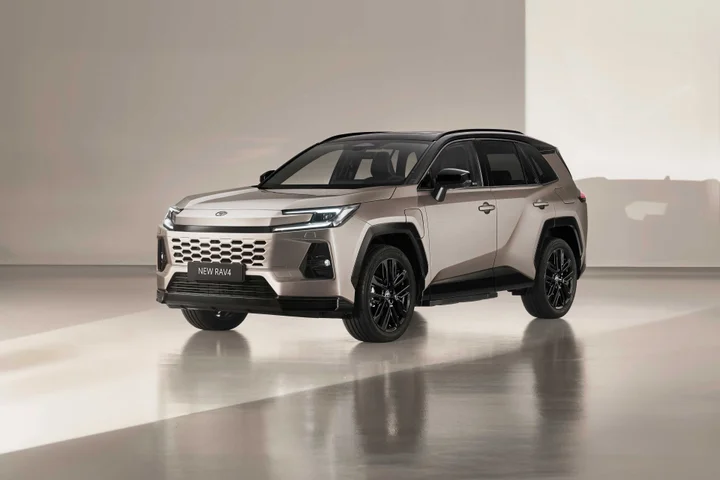

Photos
Specifications
Vehicle Details
- Year
- 2022
- Make
- Toyota
- Model
- RAV4
- Variation
- Plug-in Hybrid E-
- Generation
- XA10 (1995-1998)
- Seats
- 5
- Doors
- 5
- Fuel
- Plug-in Hybrid Gasoline
- Drivetrain
- AWD
Powertrain
- Engine Name
- 2.5 18.10 kWh I4
- Engine Configuration
- Inline
- Power (hp)
- 306 hp
- Power (kW)
- 225 kW
- Brake Horsepower
- 302 bhp
- Torque (Nm)
- 227 Nm
- Torque (lb-ft)
- 167 lb-ft
- RPM at Max Torque
- 3,200 rpm
- Displacement (cc)
- 2,487 cc
- Displacement (litres)
- 2.5 l
- Cylinders
- 4
- Valves Per Cylinder
- 4
- Bore
- 87.5 mm
- Stroke
- 103.4 mm
Performance & Efficiency
- Top Speed (km/h)
- 180 km/h
- Top Speed (mph)
- 112 mph
- Acceleration, 0-100 km/h
- 6 s
- Combined Consumption
- 16.6 L/100 km
Dimensions & Weight
- Length
- 4,600 mm
- Width
- 1,855 mm
- Height
- 995 mm
- Wheelbase
- 2,690 mm
- Track, Front
- 1,600 - 1,640 mm
- Ground Clearance
- 180 mm
- Turning Circle
- 11 m
- Curb Weight
- 1,910 - 2,000 kg
- Gross Weight
- 2,510 kg
- Cargo Capacity
- 510 - 600 kg
- Max Roof Load
- 70 kg
Interior Dimensions
- Head Room, Front
- 958 mm
- Head Room, Rear
- 1,003 mm
- Leg Room, Front
- 1,041 mm
- Leg Room, Rear
- 960 mm
- Hip Room, Front
- 1,379 mm
- Hip Room, Rear
- 1,212 mm
- Shoulder Room, Front
- 1,468 mm
- Shoulder Room, Rear
- 1,433 mm
Chassis & Body
- Front Doors
- Conventional
- Door Handles
- Pull-out
- Mirror Type
- Conventional
- Window Lifts, Front
- Powered
- Heated Windows
- Optional
- Heat-Insulating Windows
- First Row, Front, Rear, Second Row
- Antenna
- Shark Fin
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Tire Pressure Monitoring System
- Direct
- Number of Bolts
- 5
- Bolt Distance
- 114.3
- Nut/Bolt Dimensions
- M12x1.5
- Central Bore, Front
- 60.1
- Central Bore, Rear
- 60.1
- Fastening Type
- Lug Nuts
- Tightening Torque
- 103 Nm
- Rim Material
- Alloy
- Rim Type
- Disc Wheel
Lighting
- Low Beam
- LED
- Main Beam
- LED
- Rear Lights
- LED
- Daytime Running Light
- LED
- Fog Lights
- Yes
Fuel & Engine Details
- Tank Volume
- 55 l
- Compression Ratio
- 14 :1
Electric
- Electric Vehicle Type
- Plug-in Hybrid
- Battery Capacity
- 18.1 kWh
- Electric Range (km)
- 67 - 75 km
- Electric Range (mi)
- 42 mi
Suspension & Exterior
- Cooling
- Ventilated
- Independent
- Yes
- Independent
- Yes
- Adjustments
- Electrical
- Folding
- Electrical
- Heated
- Yes
- Turning Signal
- Yes
- Special Features
- Automatic Headlight Activation, Come Home/Leaving Lights, Headlight Washers, Main Beam Assist
Instruments & Infotainment
- Trip Computer
- Yes
- Speedometer
- Digital
- Fuel Gauge
- Analogue
- Coolant Temperature
- Analogue, Digital
- Climate Control
- Automatic
- Number of Climate Zones
- 2
- Air Condition
- Yes
- Pollen Filter
- Yes
- Outside Temperature Indicator
- Yes
- Controls
- Buttons, Rotary Dials
- Radio
- AM, DAB+, FM, RDS
- App-Connect
- Android Auto, Apple CarPlay (Wired)
- Bluetooth
- Audio, Phone
- Center Display
- 9"
- Center Display Controls
- Touchscreen
- Total Number of Speakers
- 6 - 9 pcs
- Adjustments
- Mechanical
- Anti-glare
- Automatic
Interior & Controls
- Cup Holders
- Yes
- Read Light
- Front, Rear
- Guide Light
- Entry Guard, Footwell (Front)
- Make-up Mirror
- Driver Side, Passenger Side
- Clock
- Yes
- 12V Outlet
- Front
- Carpets
- Front, Rear
- Multifunction Steering Wheel
- Yes
- Menu Navigation
- Buttons
- Cruise Control
- Activate/Deactivate, Speed Up/Down (Buttons)
- Mode Selection
- Yes
- Heated
- Yes
- Power Steering
- Electric
- Adjustments
- Telescope, Tilt
- Number of Spokes
- 5
- Material
- Leather
- Colour
- Black
- Steering Mechanism
- Rack and Pinion
- Rear Trunk
- Yes
- Volume
- 490 l
- Hatch Opening Type
- From Roof
- Interior Decor Colour
- Black
- Transmission Knob Material
- Leather
- Pedals
- Standard
Seats
- Power Seat, Driver
- Yes
- Power Seat, Passenger
- Optional
- Heated Seats
- Driver, Passenger
- Armrest
- Middle
- Ventilated Seats
- Optional
- Type of Seat
- Adult
- Collapsible
- Manual
Convenience & Equipment
- Keyless Entry
- Yes
- Keyless Start
- Yes
- Cruise Control
- Adaptive Cruise Control
- Cameras
- Rear
- View Location
- Center Display
- Voice Control
- Optional
- Wireless Phone Charger
- Optional
- GPS
- Optional
- Driving Mode Selection
- Eco, Sport
- Horn
- Dual Note
- Tire Repair Kit
- Yes
- Warning Triangle
- Optional
- First Aid Kit
- Optional
Seatbelts
- Height Adjustable Retractor
- Yes
- Manual
- Yes
- Three-Point-Belt
- Centre Rear Seat, Front Seats, Outer Rear Seats
Safety & Driver Assistance
- Electronic Stability Control (ESC)
- Yes
- Forward Collision Warning (FCW)
- Yes
- Rear Cross-Traffic Alert (RCTA)
- Optional
- Safe Exit Warning (SEW)
- Yes
- Lane Assist System
- Yes
- Lane Departure Warning (LDW)
- Yes
- Lane Keeping Assist (LKA)
- Yes
- Sign Assist
- Yes
- Emergency Stop Signal (ESS)
- Yes
- Autonomous Emergency Brake System (AEB)
- Yes
- City
- Yes
- Inter-urban
- Yes
- Anti-lock Braking System (ABS)
- Four-channel
- Electronic Brakeforce Distribution (EBD)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Parking Sensors
- Front, Rear
- Blind Spot Detection (BLIS)
- Optional
- Light Sensor
- Yes
- Rain Sensors
- Yes
- Immobiliser
- Yes
- Electronic
- Yes
Security
- Anti-theft Alarm
- Optional
- Central Locking
- Remote
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Chest Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Head Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Knee Airbag
- Driver: Yes, Passenger: -, Rear: -
- Curtain Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Airbag cut-off Switch
- Driver: -, Passenger: Yes, Rear: -
- Seat Belt Reminder
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Pretensioner
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Load Limiter
- Driver: Yes, Passenger: Yes, Rear: Yes
Classification
- Australian Classification
- Medium SUV
- European Segment
- J-Segment JC-Segment
Quick Facts
- Fuel Type
- Plug-in Hybrid Gasoline
- Country
- Japan
Appearances
Generation
XA10 (1995-1998)
