2024 BMW 5 Series 540d xDrive Steptronic, 8-speed
- Mild-Hybrid Diesel
- Germany

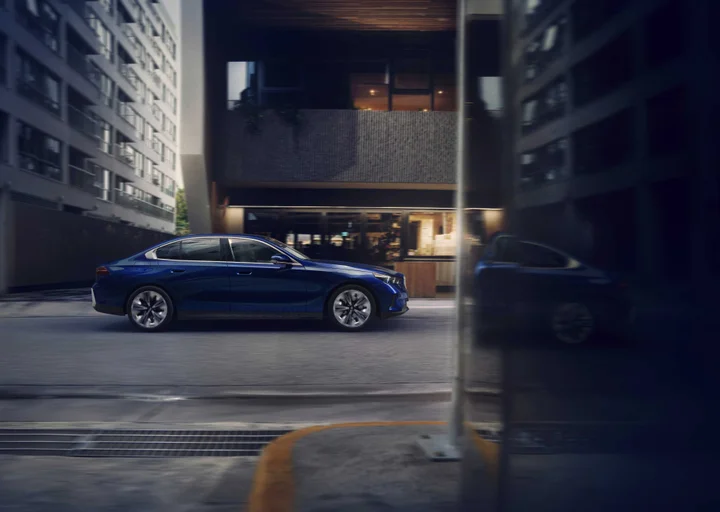

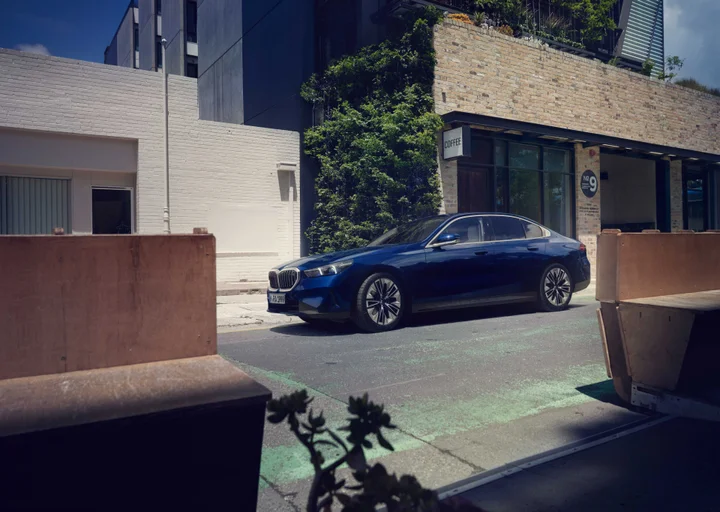

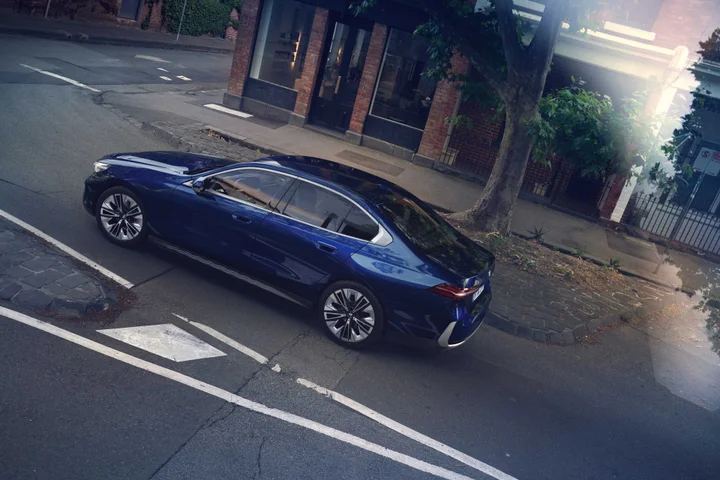

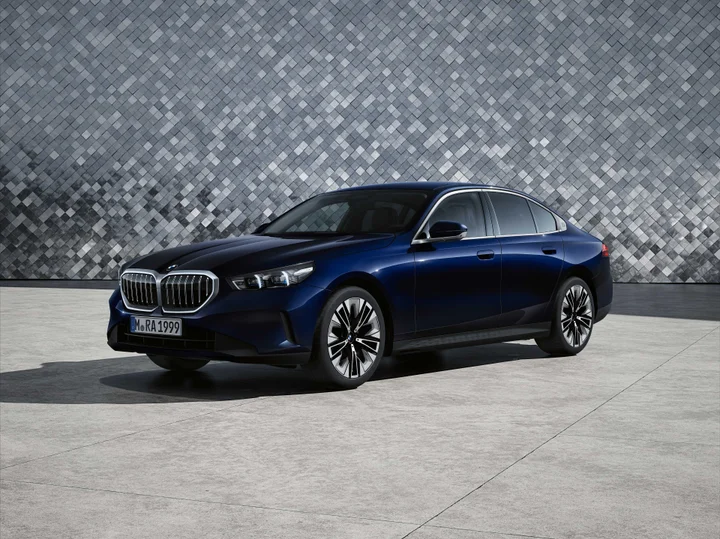

Photos
Specifications
Vehicle Details
- Year
- 2024
- Make
- BMW
- Model
- 5 Series
- Variation
- 540d xDrive Steptronic, 8-speed
- Generation
- E12 (1974-1976)
- Seats
- 5
- Doors
- 4
- Fuel
- Mild-Hybrid Diesel
- Drivetrain
- AWD
Powertrain
- Engine Name
- 3.0 I6
- Engine Configuration
- Inline
- Power (hp)
- 303 hp
- Power (kW)
- 223 kW
- Brake Horsepower
- 299 bhp
- Torque (Nm)
- 670 Nm
- Torque (lb-ft)
- 494 lb-ft
- RPM at Max Power
- 4,000 rpm
- RPM at Max Torque
- 1,500 rpm
- Displacement (cc)
- 2,993 cc
- Displacement (litres)
- 3.0 l
- Cylinders
- 6
- Valves Per Cylinder
- 4
- Bore
- 84 mm
- Stroke
- 90 mm
Performance & Efficiency
- Top Speed (km/h)
- 250 km/h
- Top Speed (mph)
- 155 mph
- Acceleration, 0-100 km/h
- 5.2 s
Dimensions & Weight
- Length
- 5,060 mm
- Width
- 1,900 mm
- Width With Mirrors
- 2,156 mm
- Height
- 1,515 mm
- Wheelbase
- 2,995 mm
- Track, Front
- 1,616 - 1,622 mm
- Track, Rear
- 1,622 - 1,658 mm
- Ground Clearance
- 146 mm
- Turning Circle
- 11.7 m
- Curb Weight
- 1,980 kg
- Gross Weight
- 2,560 kg
- Cargo Capacity
- 655 kg
- Max Roof Load
- 75 kg
Interior Dimensions
- Head Room, Front
- 1,033 mm
- Head Room, Rear
- 969 mm
- Leg Room, Front
- 1,049 mm
- Leg Room, Rear
- 940 mm
- Hip Room, Front
- 1,504 mm
- Hip Room, Rear
- 1,445 mm
- Shoulder Room, Front
- 1,536 mm
- Shoulder Room, Rear
- 1,497 mm
Chassis & Body
- Front Doors
- Conventional
- Door Handles
- Same as Car
- Mirror Type
- Conventional
- Window Lifts, Front
- Powered
- Heated Windows
- Rear
- Normal Roof
- Yes
- Antenna
- Shark Fin
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Tire Pressure Monitoring System
- Direct
- Number of Bolts
- 5
- Bolt Distance
- 112
- Nut/Bolt Dimensions
- M14x1.25
- Central Bore, Front
- 66.6
- Central Bore, Rear
- 66.6
- Fastening Type
- Lug Bolts
- Tightening Torque
- 140 Nm
- Rim Material
- Alloy
- Rim Type
- Disc Wheel
Lighting
- Low Beam
- LED
- Main Beam
- LED
- Rear Lights
- LED
- Daytime Running Light
- LED
Fuel & Engine Details
- Tank Volume
- 60 l
- Compression Ratio
- 16.5 :1
Suspension & Exterior
- Cooling
- Ventilated
- Independent
- Double Wishbone
- Spring, Rear
- Coil
- Independent
- Multi-link
- Adjustments
- Electrical
- Heated
- Yes
- Turning Signal
- Yes
- Special Features
- Adaptive Headlights
- Anti-Theft Locking Lug Nuts/Bolts
- Yes
Instruments & Infotainment
- Trip Computer
- Yes
- Speedometer
- Digital
- Tachometer
- Digital
- Fuel Gauge
- Digital
- Coolant Temperature
- Digital
- Climate Control
- Automatic
- Air Condition
- Yes
- Radio
- DAB
- Bluetooth
- Audio, Phone
- Center Display
- 14.9"
- Center Display Controls
- Touchscreen
- Adjustments
- Mechanical
- Anti-glare
- Automatic
- Rear-view Mirror: Mirror Type
- Standard
Interior & Controls
- Read Light
- Front, Rear
- Guide Light
- Door Handles, Footwell (Front)
- Ambient Light
- Yes
- Carpets
- Front, Rear
- Multifunction Steering Wheel
- Yes
- Menu Navigation
- Buttons
- Cruise Control
- Activate/Deactivate, Resume, Speed Up/Down (Buttons)
- Heated
- Optional
- Power Steering
- Electric
- Adjustments
- Telescope, Tilt
- Number of Spokes
- 2
- Material
- Leather
- Colour
- Black
- Steering Mechanism
- Rack and Pinion
- Rear Trunk
- Yes
- Volume
- 490 l
- Hatch Opening Type
- Under Rear Window
Seats
- Power Seat, Driver
- Optional
- Power Seat, Passenger
- Optional
- Heated Seats
- Driver, Passenger
- Armrest
- Middle
- Ventilated Seats
- Optional
- Type of Seat
- Sport Seats
- Collapsible
- Yes
- Type of Seat
- Adult
Convenience & Equipment
- Cameras
- Rear
- View Location
- Center Display
- Wireless Phone Charger
- Front
- GPS
- Navigation
- Tire Repair Kit
- Optional
- Compressor
- Optional
- Fire Extinguisher
- Optional
- Warning Triangle
- Yes
- First Aid Kit
- Yes
Seatbelts
- Height Adjustable Retractor
- Yes
- Manual
- Yes
- Three-Point-Belt
- Centre Rear Seat, Front Seats, Outer Rear Seats
Safety & Driver Assistance
- Electronic Stability Control (ESC)
- Yes
- Lane Assist System
- Yes
- Lane Departure Warning (LDW)
- Yes
- Lane Keeping Assist (LKA)
- Yes
- Emergency Stop Signal (ESS)
- Yes
- Autonomous Emergency Brake System (AEB)
- Yes
- Car-to-car
- Yes
- Anti-lock Braking System (ABS)
- Four-channel
- Electronic Brakeforce Distribution (EBD)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Parking Sensors
- Rear
- Light Sensor
- Yes
- Rain Sensors
- Yes
- Immobiliser
- Yes
- Electronic
- Yes
Security
- Anti-theft Alarm
- Yes
- Central Locking
- Remote
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Chest Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Head Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Curtain Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Airbag cut-off Switch
- Driver: -, Passenger: Yes, Rear: -
- Seat Belt Reminder
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Pretensioner
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Load Limiter
- Driver: Yes, Passenger: Yes, Rear: Yes
Classification
- Australian Classification
- Large Car
- European Segment
- E-Segment
Quick Facts
- Fuel Type
- Mild-Hybrid Diesel
- Country
- Germany
Appearances
Generation
E12 (1974-1976)
