2024 Volkswagen Tiguan
- Diesel
- Germany

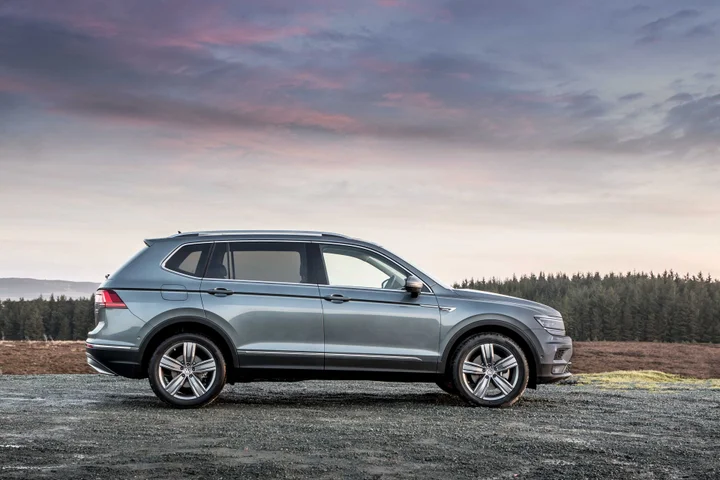

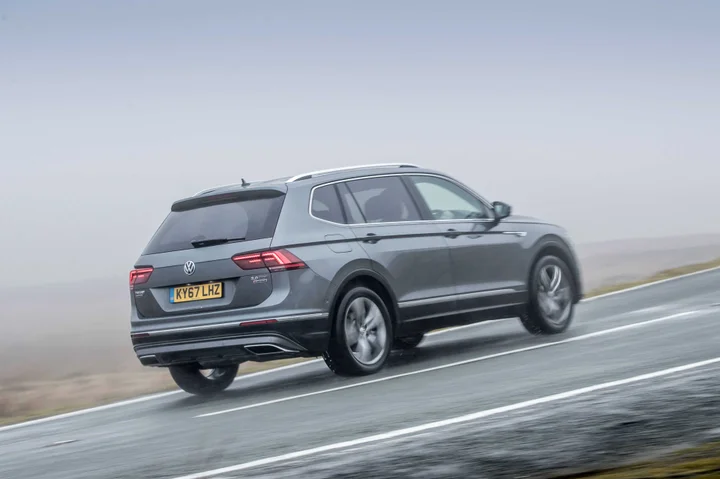

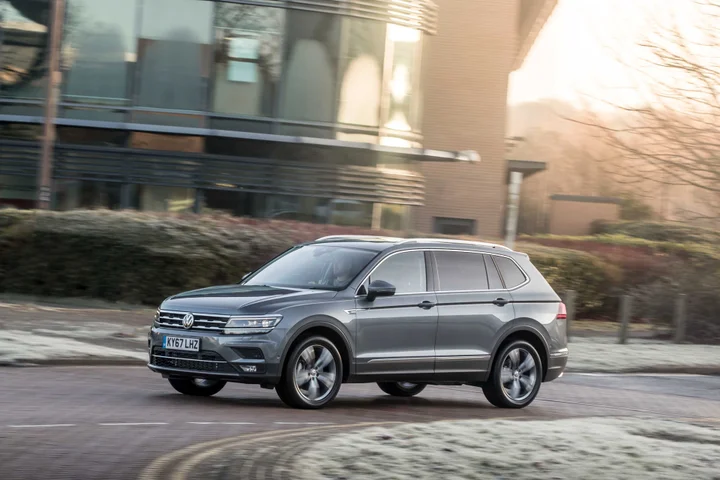

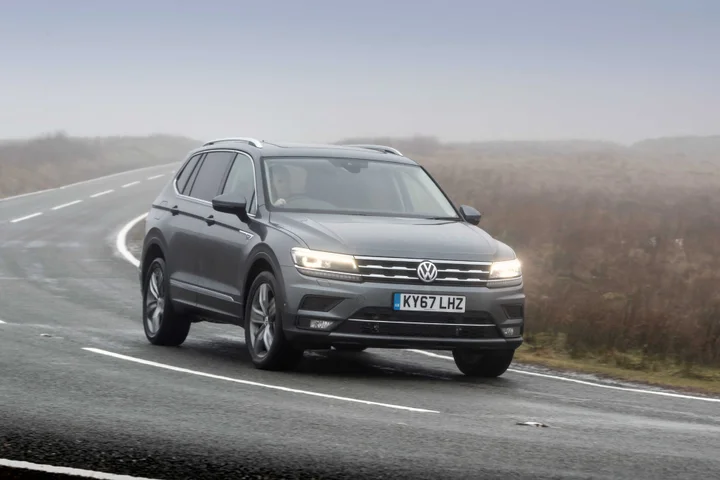

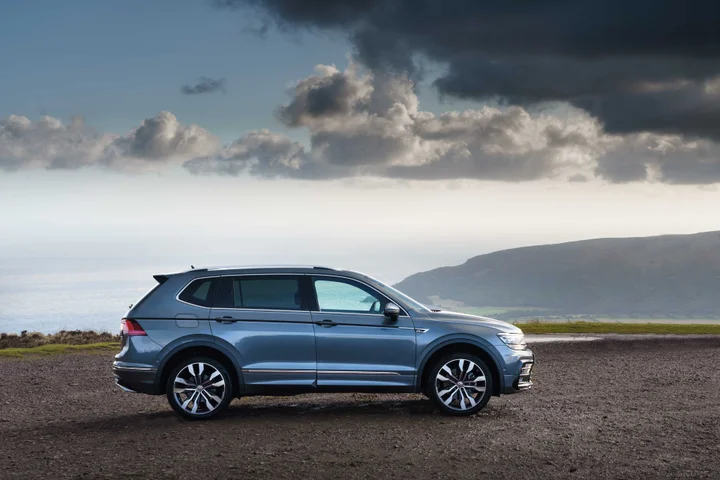

Photos
Specifications
Vehicle Details
- Year
- 2024
- Make
- Volkswagen
- Model
- Tiguan
- Generation
- I (Typ 5N) (2011-present)
- Seats
- 5
- Doors
- 5
- Fuel
- Diesel
- Drivetrain
- AWD
Powertrain
- Engine Name
- 2.0 I4
- Engine Configuration
- Inline
- Power (hp)
- 193 hp
- Power (kW)
- 142 kW
- Brake Horsepower
- 190 bhp
- Torque (Nm)
- 400 Nm
- Torque (lb-ft)
- 295 lb-ft
- RPM at Max Power
- 3,500 rpm
- RPM at Max Torque
- 1,750 rpm
- Displacement (cc)
- 1,968 cc
- Displacement (litres)
- 2.0 l
- Cylinders
- 4
- Valves Per Cylinder
- 4
- Bore
- 81 mm
- Stroke
- 95.5 mm
Performance & Efficiency
- Top Speed (km/h)
- 216 km/h
- Top Speed (mph)
- 134 mph
- Acceleration, 0-100 km/h
- 7.8 s
Dimensions & Weight
- Length
- 4,726 mm
- Width
- 30 mm
- Width With Mirrors
- 2,099 mm
- Height
- 1,674 mm
- Wheelbase
- 2,789 mm
- Track, Front
- 1,575 - 1,585 mm
- Track, Rear
- 1,564 - 1,575 mm
- Ground Clearance
- 201 mm
- Turning Circle
- 11.5 m
- Curb Weight
- 1,790 kg
- Gross Weight
- 2,380 kg
- Cargo Capacity
- 590 kg
- Max Roof Load
- 75 kg
Interior Dimensions
- Head Room, Front
- 1,008 - 1,054 mm
- Head Room, Rear
- 958 - 1,002 mm
- Leg Room, Front
- 1,021 mm
- Leg Room, Rear
- 930 mm
- Hip Room, Front
- 1,384 mm
- Hip Room, Rear
- 1,359 mm
- Shoulder Room, Front
- 1,503 mm
- Shoulder Room, Rear
- 1,503 mm
Chassis & Body
- Body Material
- Steel
- Front Doors
- Conventional
- Door Handles
- Pull-out
- Mirror Type
- Conventional
- Window Lifts, Front
- Powered
- Heated Windows
- Rear
- Heat-Insulating Windows
- First Row, Front, Rear, Second Row
- Antenna
- Shark Fin
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Anti-roll Bar
- Front, Rear
- Tire Pressure Monitoring System
- Optional
- Number of Bolts
- 5
- Bolt Distance
- 112
- Nut/Bolt Dimensions
- M14x1.5
- Central Bore, Front
- 57.1
- Central Bore, Rear
- 57.1
- Fastening Type
- Lug Bolts
- Tightening Torque
- 140 Nm
- Rim Material
- Alloy
- Rim Type
- Disc Wheel
Lighting
- Low Beam
- H7
- Main Beam
- H7
- Rear Lights
- LED
- Daytime Running Light
- LED
- Fog Lights
- Yes
Fuel & Engine Details
- Tank Volume
- 58 l
Suspension & Exterior
- Cooling
- Ventilated
- Independent
- MacPherson Strut
- Spring, Rear
- Coil
- Independent
- Multi-link
- Adjustments
- Electrical
- Heated
- Yes
- Turning Signal
- Yes
- Rear
- Optional
- Special Features
- Automatic Headlight Activation, Come Home/Leaving Lights, Main Beam Assist
- Headlight Range Adjustment
- Automatic (Dynamic)
- Anti-Theft Locking Lug Nuts/Bolts
- Optional
Instruments & Infotainment
- Trip Computer
- Yes
- Climate Control
- Automatic
- Number of Climate Zones
- 3
- Air Condition
- Yes
- Pollen Filter
- Yes
- Outside Temperature Indicator
- Yes
- Controls
- Buttons, Rotary Dials
- Radio
- AM, DAB+, FM
- App-Connect
- Optional
- Bluetooth
- Audio, Phone
- Center Display
- Yes
- Center Display Controls
- Buttons, Touchscreen
- Total Number of Speakers
- 8 pcs
- Adjustments
- Mechanical
- Anti-glare
- Automatic
- Rear-view Mirror: Mirror Type
- Standard
Interior & Controls
- Cup Holders
- Yes
- Read Light
- Front, Rear
- Guide Light
- Bottom of the Doors, Entry Guard, Footwell (Front)
- Ambient Light
- Optional
- Selectable Light Colour
- Optional
- Make-up Mirror
- Driver Side, Passenger Side
- Clock
- Yes
- 12V Outlet
- Front, Rear, Trunk
- Carpets
- Optional
- Multifunction Steering Wheel
- Yes
- Menu Navigation
- Buttons
- Cruise Control
- Activate/Deactivate, Resume, Speed Up/Down (Buttons)
- Heated
- Optional
- Power Steering
- Electro-mechanical
- Adjustments
- Telescope, Tilt
- Number of Spokes
- 3
- Material
- Leather
- Colour
- Black
- Steering Mechanism
- Rack and Pinion
- Rear Trunk
- Yes
- Volume
- 760 l
- Hatch Opening Type
- From Roof
- Transmission Knob Material
- Leather
- Pedals
- Standard
Seats
- Power Seat, Driver
- Optional
- Power Seat, Passenger
- Optional
- Armrest
- Middle
- Ventilated Seats
- Optional
- Type of Seat
- Adult
- Collapsible
- Manual
Convenience & Equipment
- Keyless Entry
- Optional
- Keyless Start
- Optional
- Cruise Control
- Yes
- Cameras
- Optional
- GPS
- Optional
- Horn
- Dual Note
- Tire Repair Kit
- Yes
- Compressor
- Yes
- Fire Extinguisher
- Optional
- Warning Triangle
- Yes
- First Aid Kit
- Yes
Seatbelts
- Height Adjustable Retractor
- Yes
- Manual
- Yes
- Three-Point-Belt
- Centre Rear Seat, Front Seats, Outer Rear Seats
Safety & Driver Assistance
- Electronic Stability Control (ESC)
- Yes
- Forward Collision Warning (FCW)
- Yes
- Rear Cross-Traffic Alert (RCTA)
- Optional
- Safe Exit Warning (SEW)
- Yes
- Lane Assist System
- Yes
- Lane Keeping Assist (LKA)
- Yes
- Sign Assist
- Optional
- Emergency Stop Signal (ESS)
- Yes
- Autonomous Emergency Brake System (AEB)
- Yes
- Car-to-car
- Yes
- Anti-lock Braking System (ABS)
- Four-channel
- Electronic Brakeforce Distribution (EBD)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Differential Lock
- Electronic
- Parking Sensors
- Front, Rear
- Blind Spot Detection (BLIS)
- Optional
- Light Sensor
- Yes
- Rain Sensors
- Yes
- Immobiliser
- Yes
- Electronic
- Yes
Security
- Anti-theft Alarm
- Optional
- Central Locking
- Remote
- Emergency Call
- Yes
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Yes, Rear: No
- Side Chest Airbag
- Driver: Yes, Passenger: Yes, Rear: Optional
- Side Head Airbag
- Driver: Yes, Passenger: Yes, Rear: No
- Knee Airbag
- Driver: Yes, Passenger: No, Rear: No
- Curtain Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Airbag cut-off Switch
- Driver: -, Passenger: Yes, Rear: No
- Seat Belt Reminder
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Pretensioner
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Load Limiter
- Driver: Yes, Passenger: Yes, Rear: Yes
Classification
- Australian Classification
- Large SUV
- European Segment
- J-Segment JC-Segment
Quick Facts
- Fuel Type
- Diesel
- Country
- Germany
Appearances
Generation
I (Typ 5N) (2011-present)
