2024 Volkswagen Tiguan generation III (Type CT)
- Mild-Hybrid Gasoline
- Germany

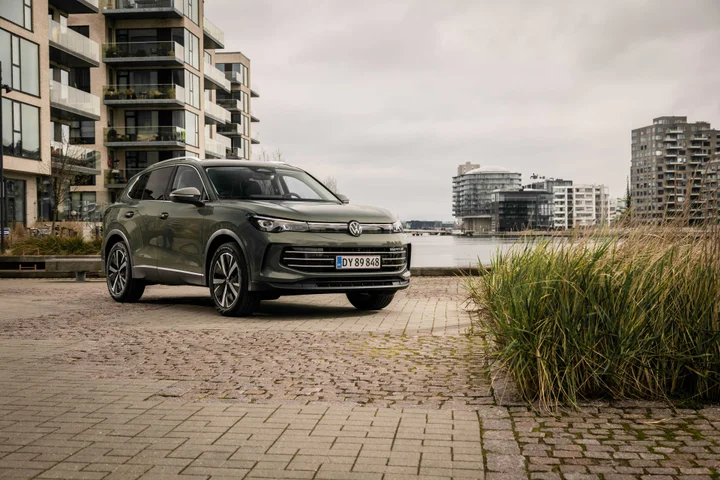

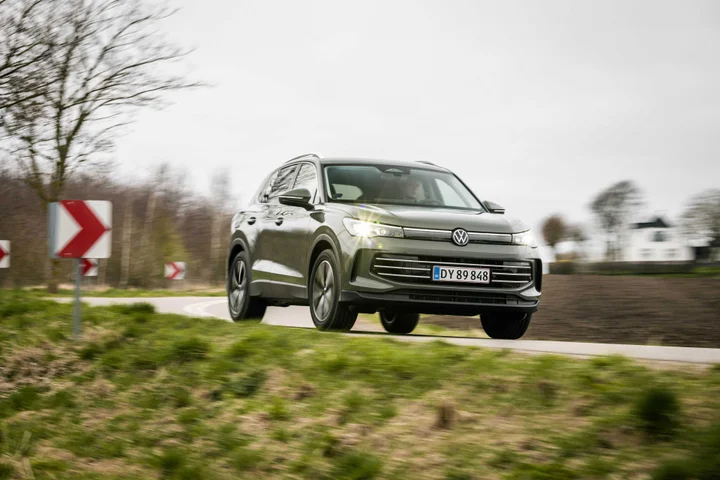

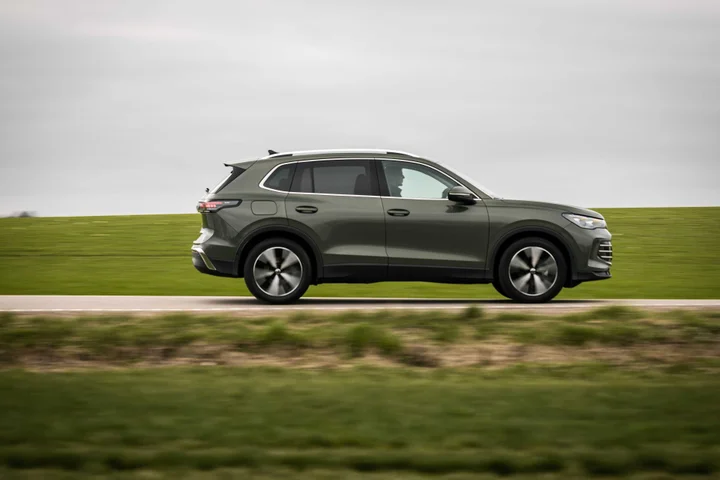

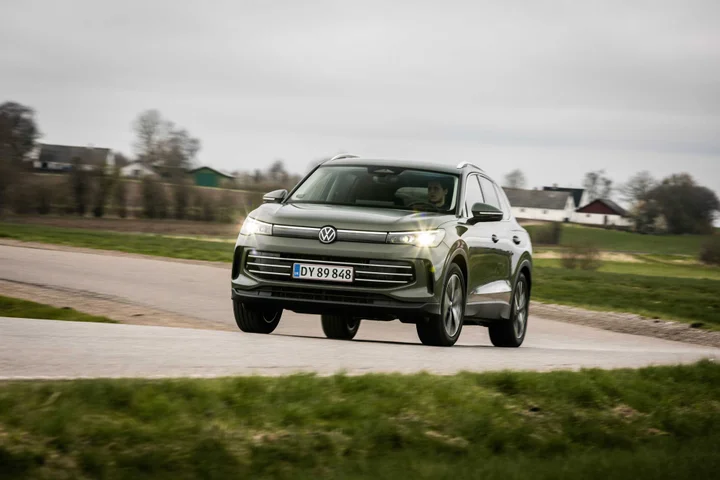

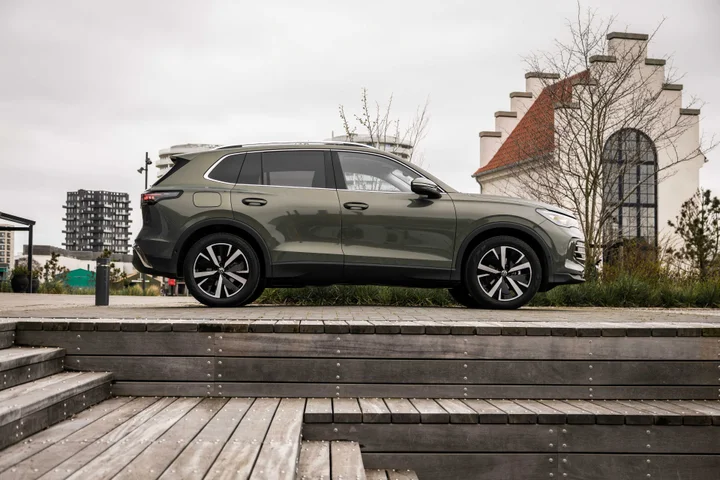

Photos
Specifications
Vehicle Details
- Year
- 2024
- Make
- Volkswagen
- Model
- Tiguan
- Variation
- generation III (Type CT)
- Generation
- I (Typ 5N) (2011-present)
- Seats
- 5
- Doors
- 5
- Fuel
- Mild-Hybrid Gasoline
- Drivetrain
- FWD
Powertrain
- Engine Name
- 1.5 I4
- Engine Configuration
- Inline
- Power (hp)
- 130 hp
- Power (kW)
- 96 kW
- Brake Horsepower
- 128 bhp
- Torque (Nm)
- 220 Nm
- Torque (lb-ft)
- 162 lb-ft
- RPM at Max Power
- 5,500 rpm
- RPM at Max Torque
- 1,500 rpm
- Displacement (cc)
- 1,498 cc
- Displacement (litres)
- 1.5 l
- Cylinders
- 4
- Valves Per Cylinder
- 4
- Bore
- 74.5 mm
- Stroke
- 85.7 mm
Performance & Efficiency
- Top Speed (km/h)
- 198 km/h
- Top Speed (mph)
- 123 mph
- Acceleration, 0-100 km/h
- 10.6 s
Dimensions & Weight
- Length
- 4,539 mm
- Width
- 1,842 - 1,859 mm
- Height
- 1,656 mm
- Wheelbase
- 2,680 mm
- Track, Front
- 1,584 - 1,588 mm
- Track, Rear
- 1,574 - 1,578 mm
- Ground Clearance
- 188 mm
- Turning Circle
- 11.7 m
- Curb Weight
- 1,598 kg
- Gross Weight
- 2,110 kg
- Cargo Capacity
- 512 kg
- Max Roof Load
- 100 kg
Interior Dimensions
- Head Room, Front
- 1,015 - 1,055 mm
- Head Room, Rear
- 979 - 1,014 mm
- Leg Room, Front
- 1,021 mm
- Leg Room, Rear
- 930 mm
- Hip Room, Front
- 1,384 mm
- Hip Room, Rear
- 1,359 mm
- Shoulder Room, Front
- 1,501 mm
- Shoulder Room, Rear
- 1,491 mm
Chassis & Body
- Body Material
- Steel
- Front Doors
- Conventional
- Door Handles
- Pull-out
- Mirror Type
- Conventional
- Window Lifts, Front
- Powered
- Heated Windows
- Rear
- Heat-Insulating Windows
- Front
- Antenna
- Shark Fin
Brakes & Wheels
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Anti-roll Bar
- Front
- Tire Pressure Monitoring System
- Direct
- Number of Bolts
- 5
- Bolt Distance
- 112
- Nut/Bolt Dimensions
- M14x1.5
- Central Bore, Front
- 57.1
- Central Bore, Rear
- 57.1
- Fastening Type
- Lug Bolts
- Tightening Torque
- 140 Nm
- Rim Material
- Alloy
- Rim Type
- Disc Wheel
Lighting
- Low Beam
- LED
- Main Beam
- LED
- Rear Lights
- LED
Fuel & Engine Details
- Tank Volume
- 55 l
Suspension & Exterior
- Cooling
- Ventilated
- Independent
- MacPherson Strut
- Spring, Rear
- Coil
- Independent
- Multi-link
- Adjustments
- Electrical
- Folding
- Electrical
- Heated
- Yes
- Turning Signal
- Yes
- Number of Windscreen Wipers, Front
- 2
- Special Features
- Automatic Headlight Activation, Come Home/Leaving Lights, Dynamic Cornering Lights
- Anti-Theft Locking Lug Nuts/Bolts
- Optional
Instruments & Infotainment
- Trip Computer
- Yes
- Speedometer
- Digital
- Tachometer
- Digital
- Fuel Gauge
- Digital
- Climate Control
- Automatic
- Number of Climate Zones
- 3
- Air Condition
- Yes
- Pollen Filter
- Yes
- Outside Temperature Indicator
- Yes
- Radio
- AM, FM
- App-Connect
- Apple CarPlay (Wireless)
- Center Display
- Yes
- Center Display Controls
- Touchscreen
- Adjustments
- Telescope, Tilt
- Rear-view Mirror: Mirror Type
- Standard
Interior & Controls
- Cup Holders
- Yes
- Read Light
- Front
- Make-up Mirror
- Driver Side, Passenger Side
- Clock
- Digital
- 12V Outlet
- Yes
- Multifunction Steering Wheel
- Yes
- Menu Navigation
- Yes
- Cruise Control
- Yes
- Power Steering
- Electro-mechanical
- Number of Spokes
- 3
- Material
- Leather
- Colour
- Black
- Rear Trunk
- Yes
- Volume
- 652 l
- Hatch Opening Type
- From Roof
Seats
- Type of Seat
- Adult
- Collapsible
- Yes
Seatbelts
- Height Adjustable Retractor
- Yes
- Manual
- Yes
- Three-Point-Belt
- Centre Rear Seat, Front Seats, Outer Rear Seats
Safety & Driver Assistance
- Electronic Stability Control (ESC)
- Yes
- Lane Assist System
- Yes
- Lane Departure Warning (LDW)
- Yes
- Lane Keeping Assist (LKA)
- Yes
- Emergency Stop Signal (ESS)
- Yes
- Autonomous Emergency Brake System (AEB)
- Yes
- Car-to-car
- Yes
- Anti-lock Braking System (ABS)
- Four-channel
- Electronic Brakeforce Distribution (EBD)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Parking Sensors
- Front, Rear
- Light Sensor
- Yes
- Rain Sensors
- Yes
- Immobiliser
- Yes
- Electronic
- Yes
Security
- Central Locking
- Remote
Airbags & Restraints
- Frontal Airbag
- Driver: Yes, Passenger: Yes, Rear: -
- Side Chest Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Side Head Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Knee Airbag
- Driver: Yes, Passenger: -, Rear: -
- Curtain Airbag
- Driver: Yes, Passenger: Yes, Rear: Yes
- Airbag cut-off Switch
- Driver: -, Passenger: Yes, Rear: -
- Seat Belt Reminder
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Pretensioner
- Driver: Yes, Passenger: Yes, Rear: Yes
- Belt Load Limiter
- Driver: Yes, Passenger: Yes, Rear: Yes
Classification
- Australian Classification
- Medium SUV
- European Segment
- J-Segment JC-Segment
Quick Facts
- Fuel Type
- Mild-Hybrid Gasoline
- Country
- Germany
Appearances
Generation
I (Typ 5N) (2011-present)
